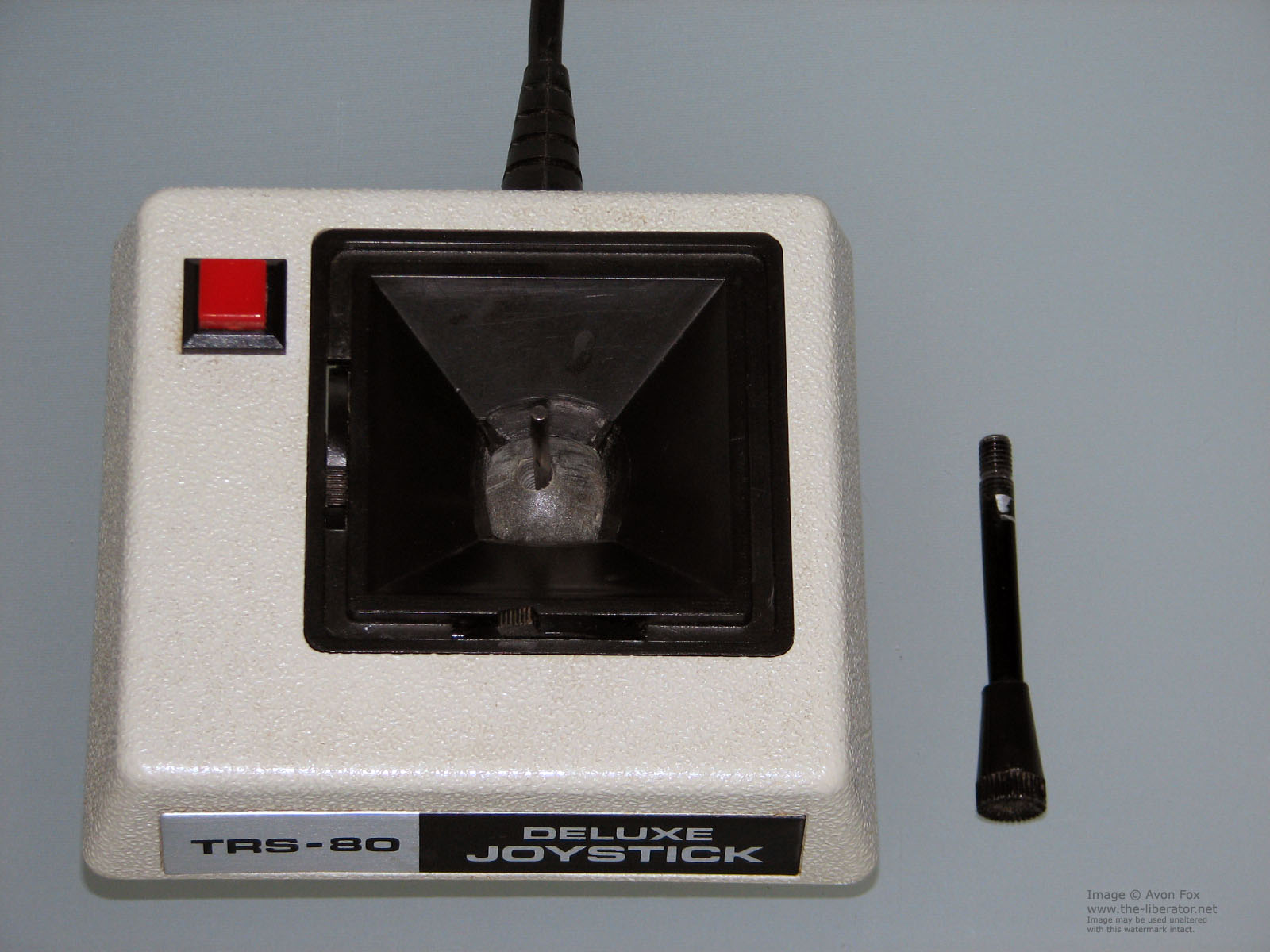

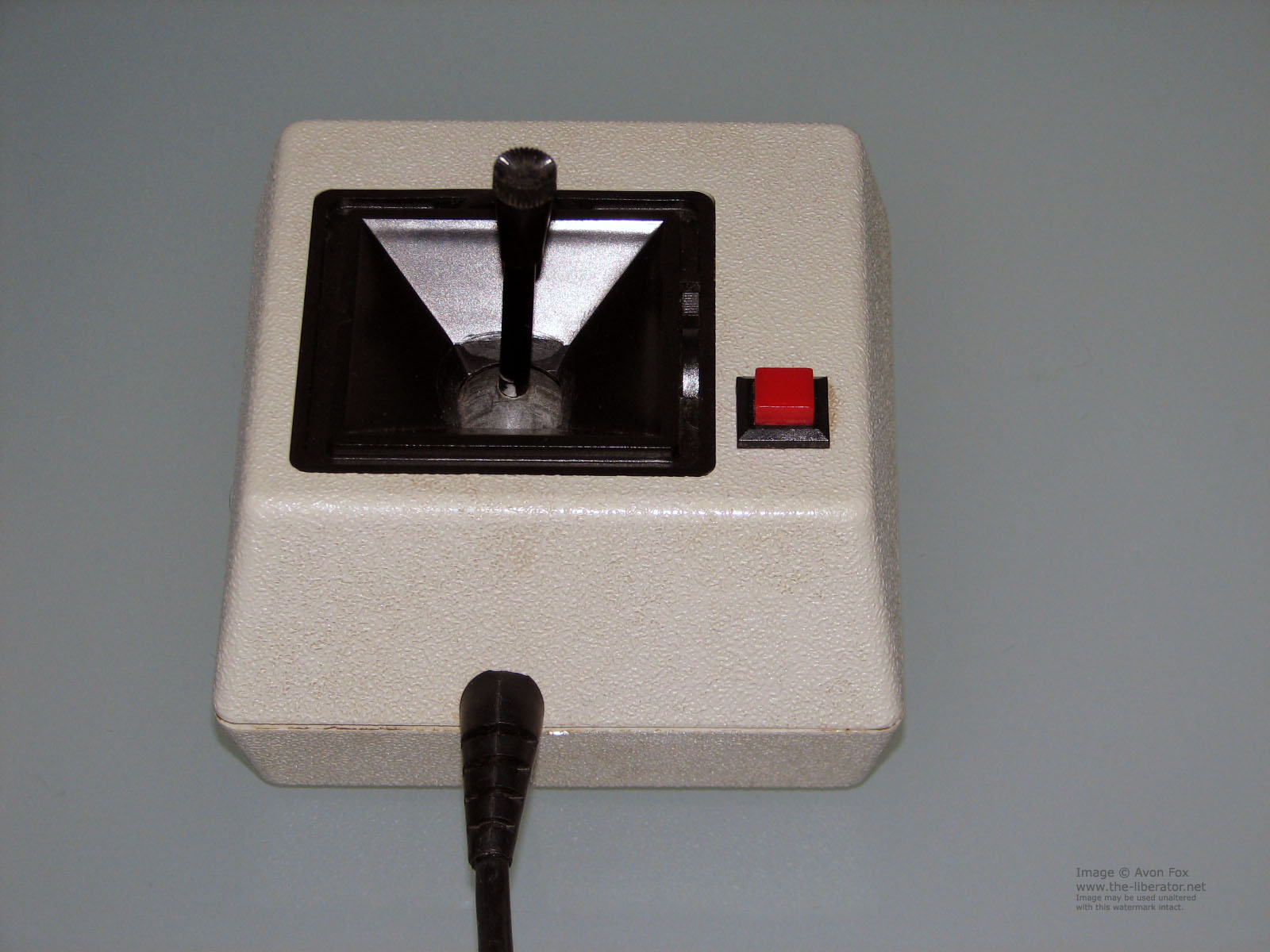

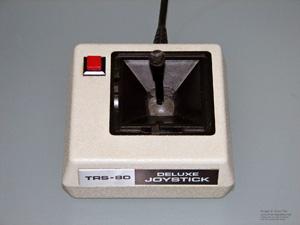

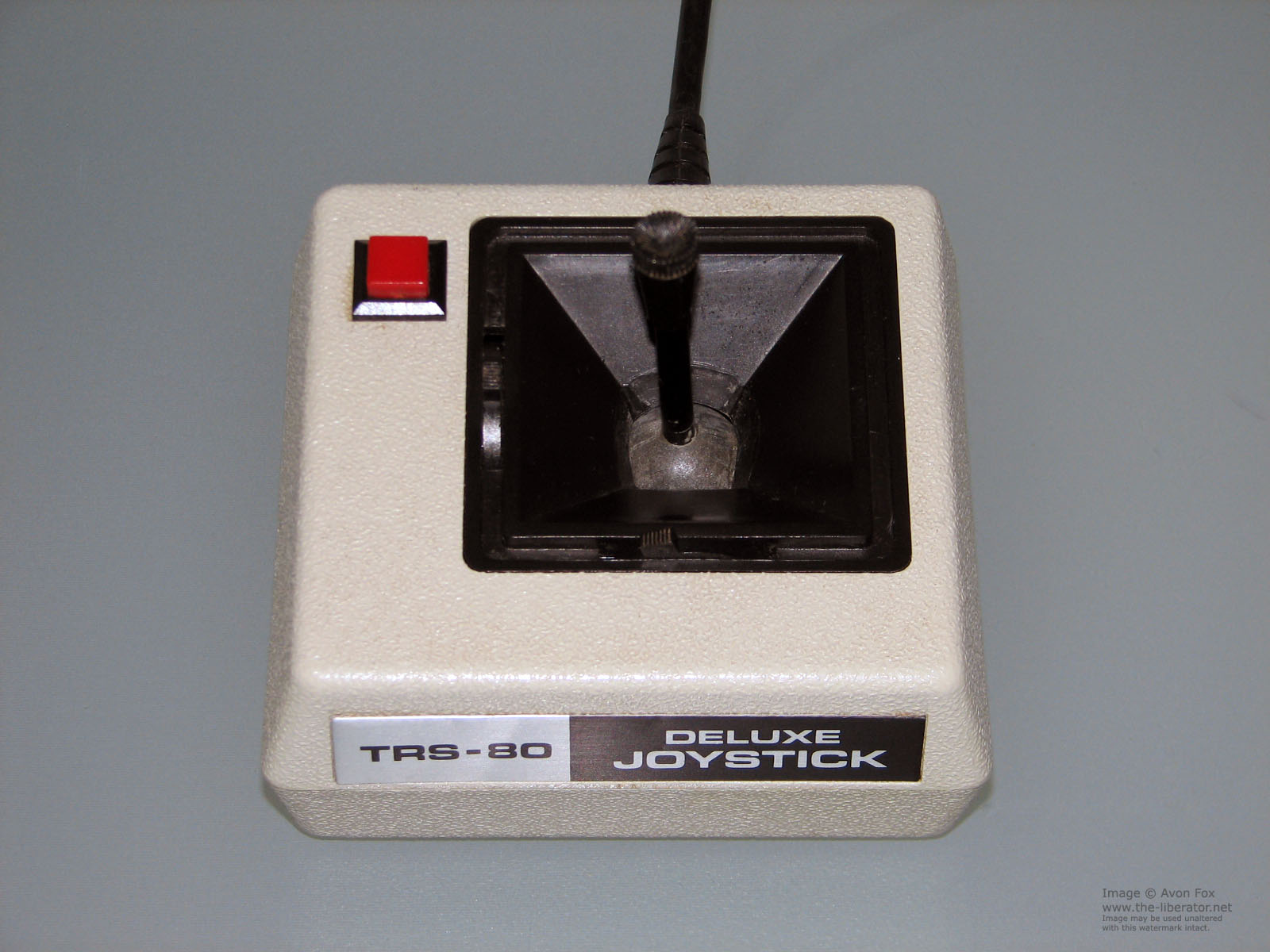

Tandy TRS-80 Deluxe Joystick (Self Centring)

The Tandy TRS-80 Joystick is a single fire/action button, analogue input peripheral primarily used for playing games on the Tandy Color Computer and Colour Computer 2.

The joystick connects to the computer using a round, five pin connector. The version designed for the Tandy Color Computer 3 has six pins to accomodate a second (black) fire/action button. As the joystick socket on the Color Computers 1 and 2 were the same as the 3 the dual button version could be used on all three models with the second fire button only functioning on the third.

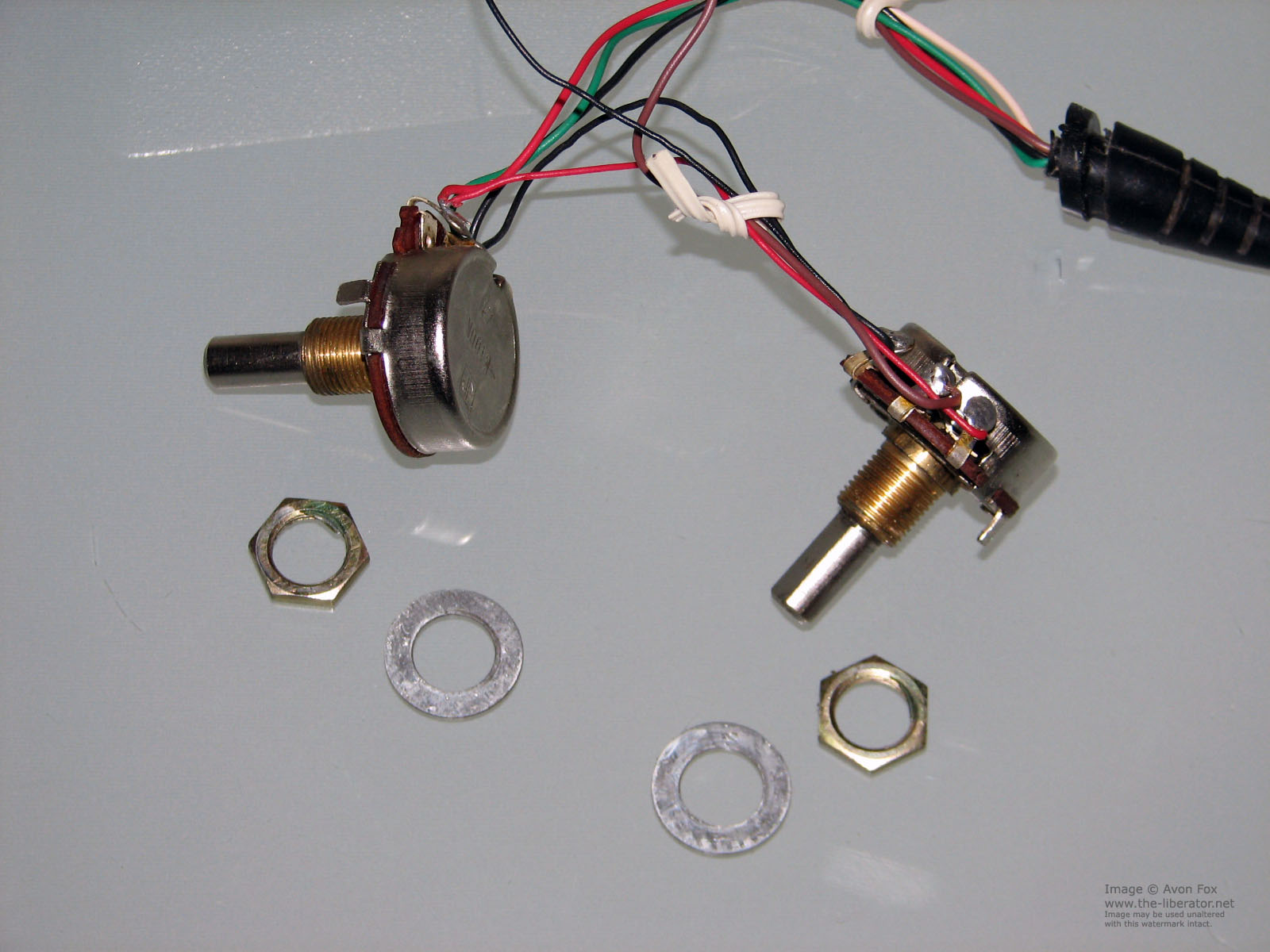

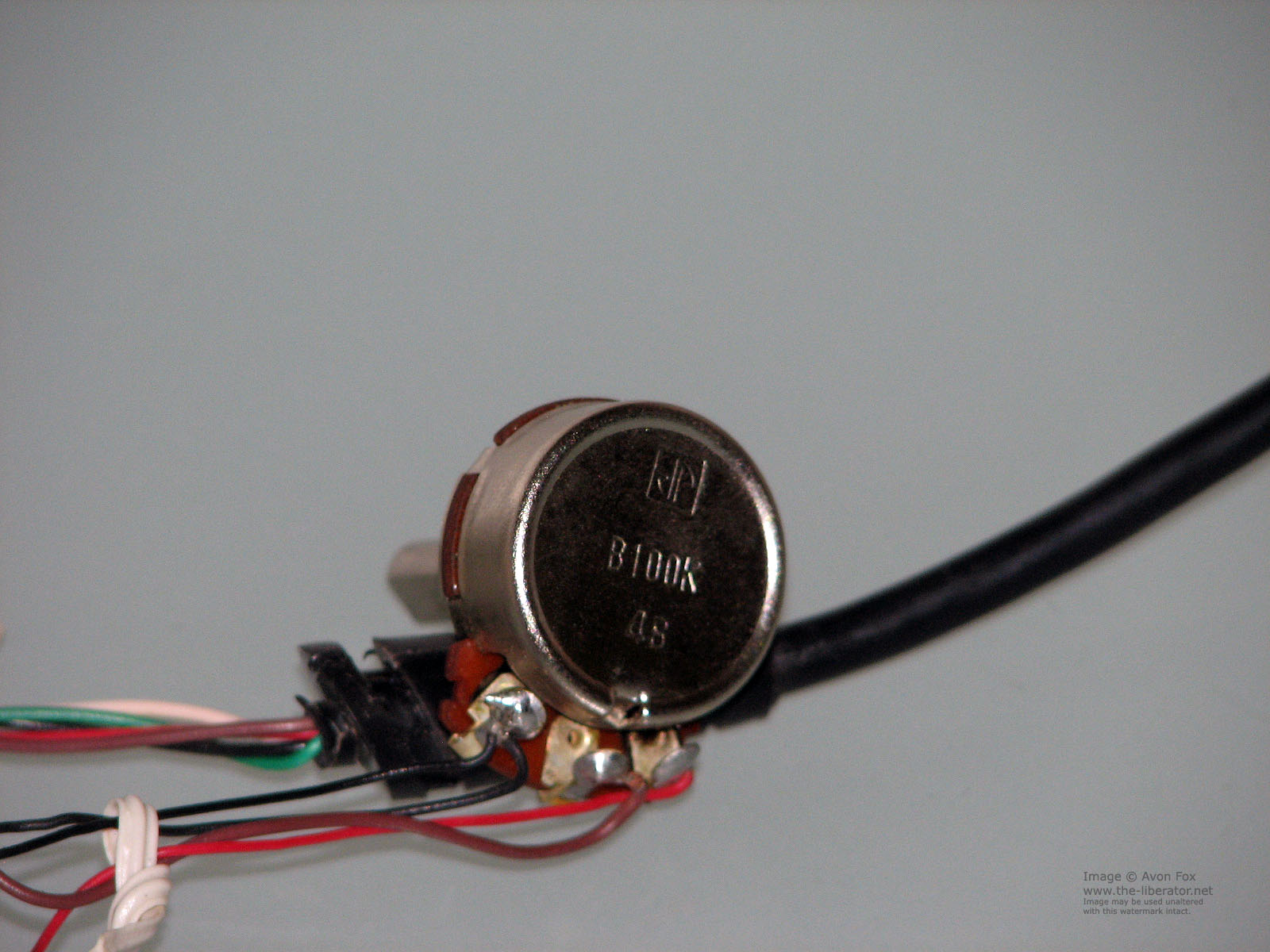

Analogue joysticks use a continuous current through two potentiometers (pot) that varies as the user moves the stick. This allows for gradual increases in movement VS digital joysticks having usually only four on / off contacts for up, down, left and right; combinations of the four create diagonal input. Modern gaming thumb sticks are analogue VS the D-Pad which is digital.

The joystick was intended to be self centring meaning that if you released the stick it would find a middle location through the use of loaded springs and movement output would stop. Non-self centring joysticks just flop about. This centre is the dead spot where the software and computer hardware accepted that this level of current from each pot meant the joystick was in the middle so no action(s) should be taken.

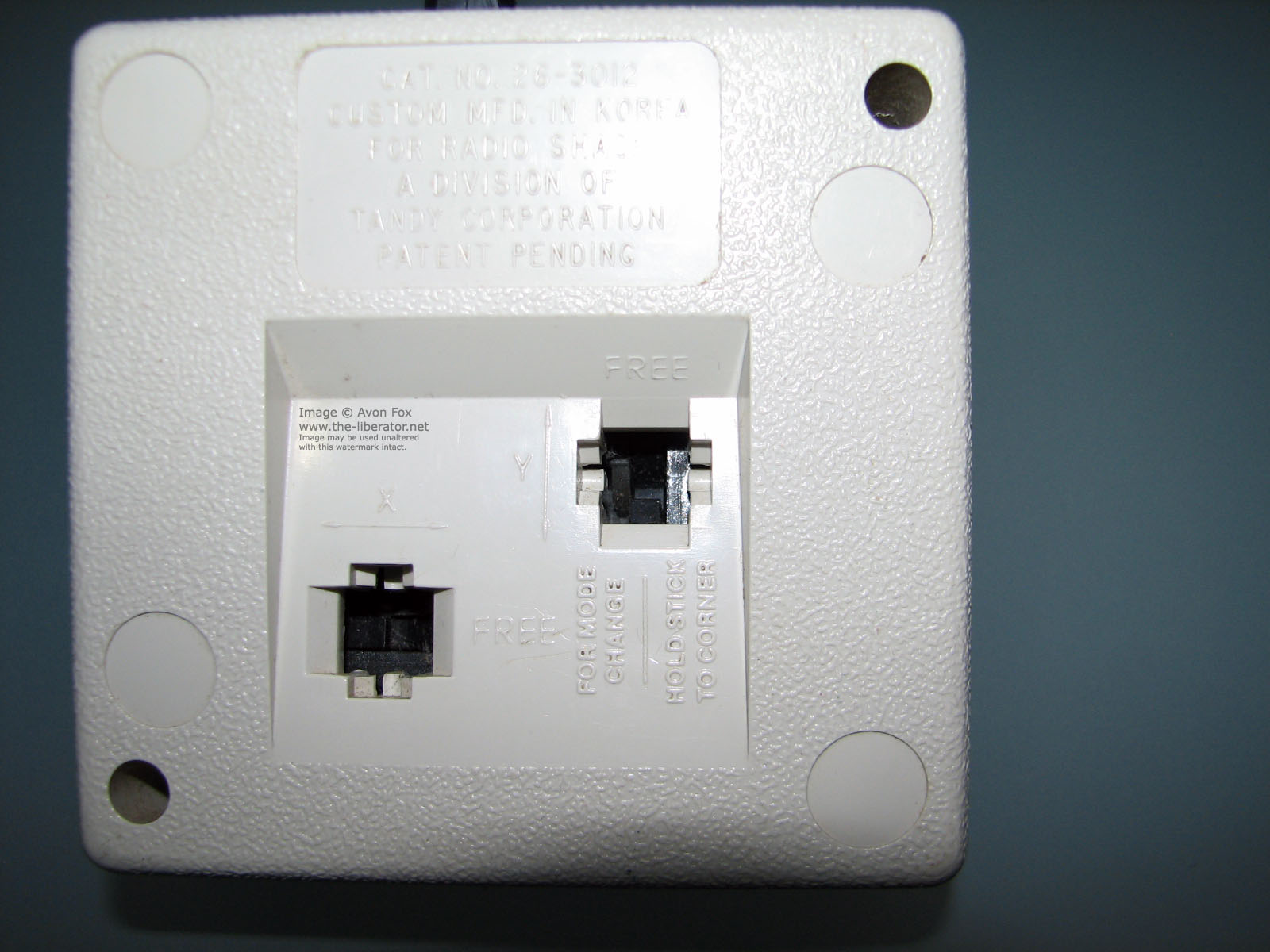

In reality however this centre could be slightly off and so there were two controls on the bottom of the joystick to allow the user to set the centre.

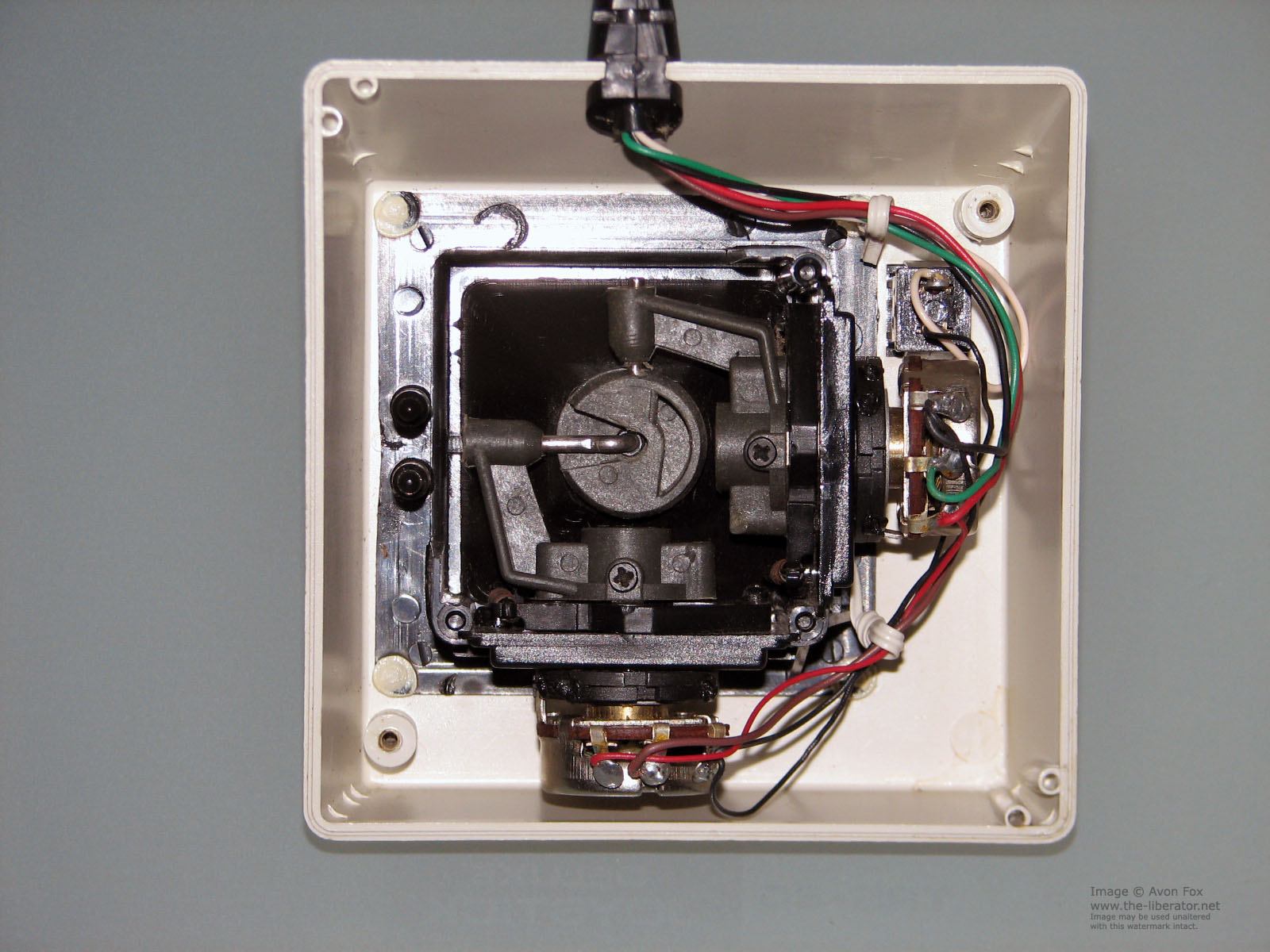

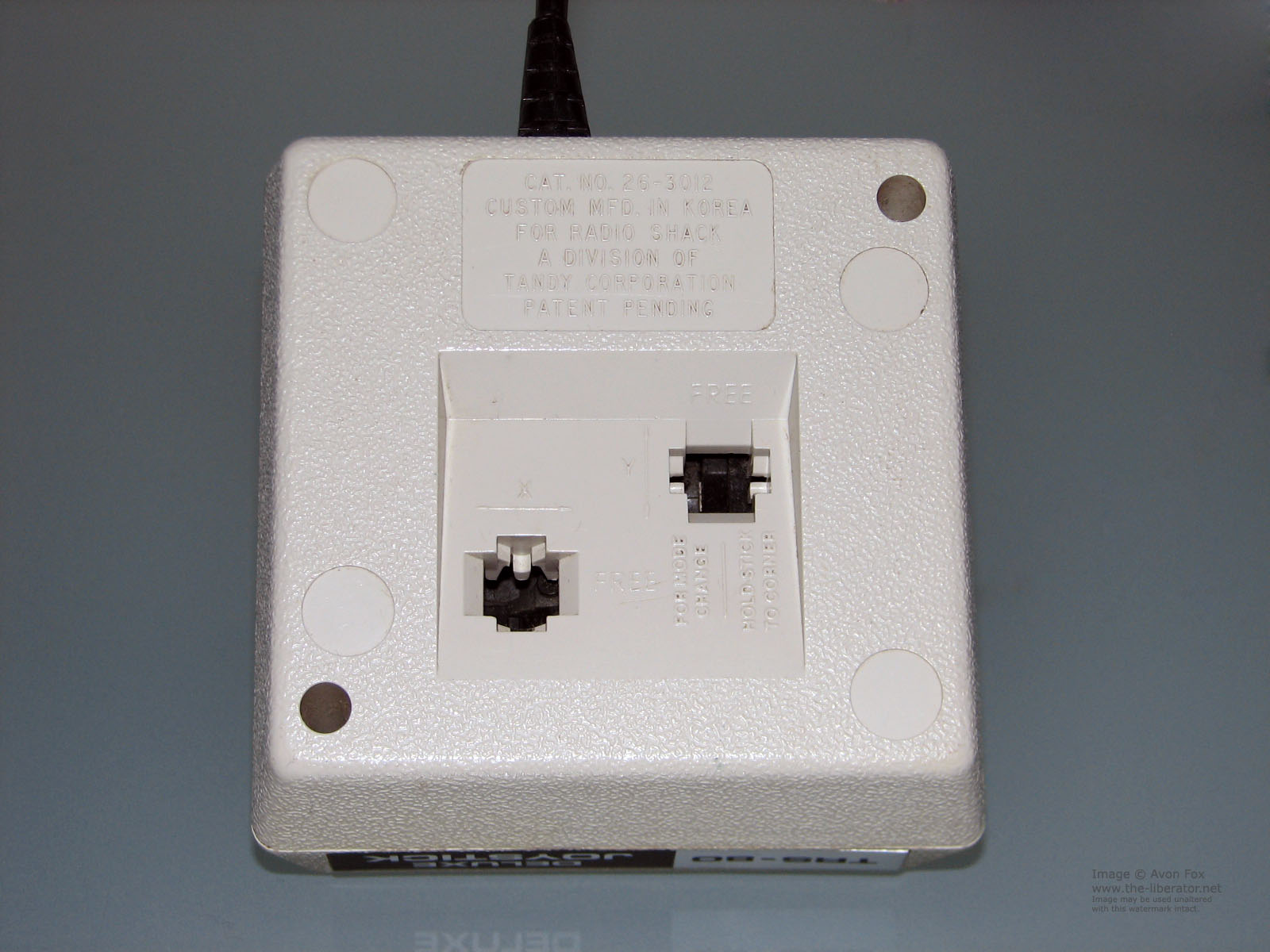

tandy trs-80 deluxe joystick tandy trs-80 deluxe joystick bottom   tandy trs-80 deluxe joystick bottom  tandy trs-80 deluxe joystick settings  tandy trs-80 deluxe joystick mechanism  tandy trs-80 deluxe joystick rod

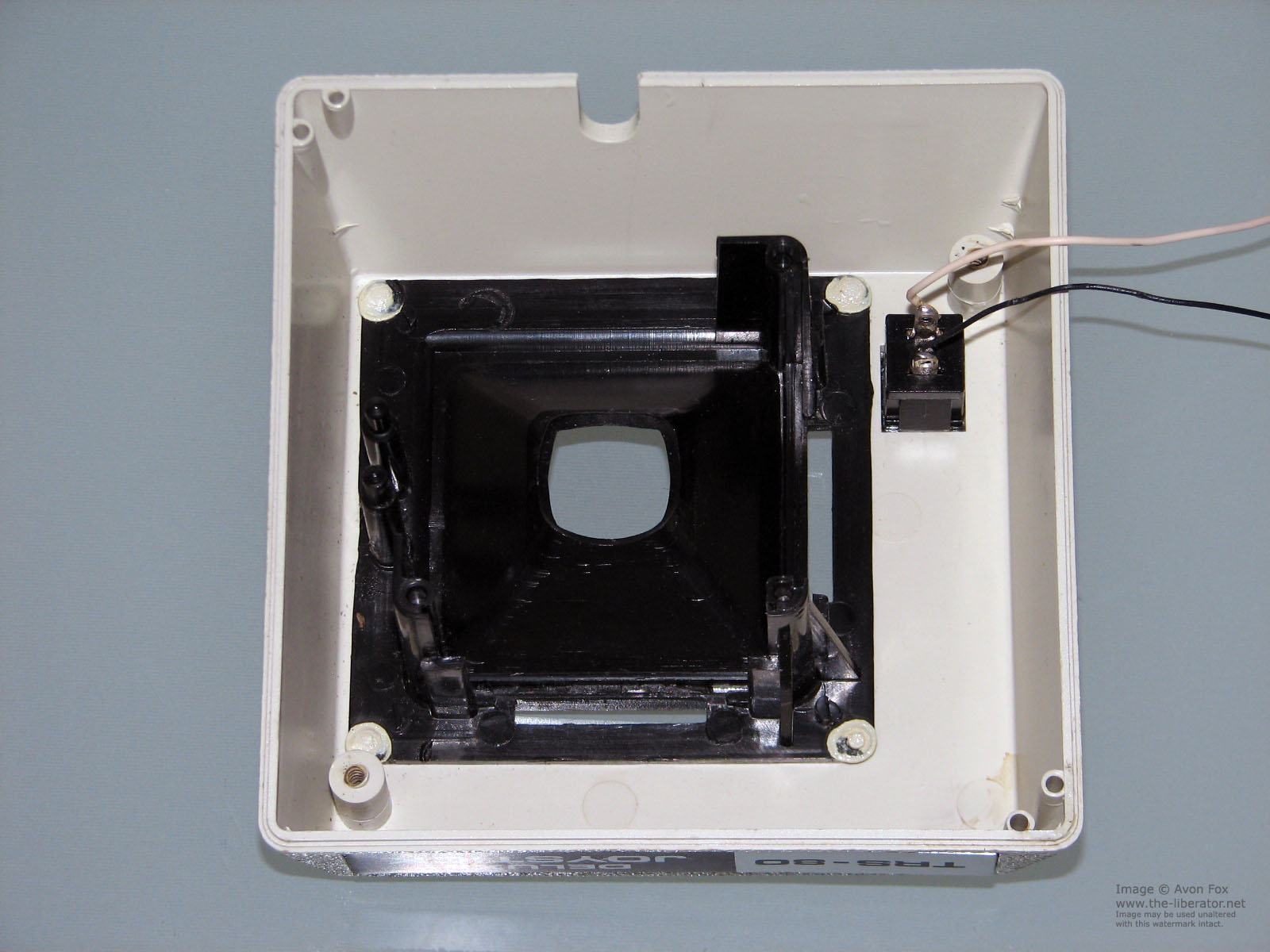

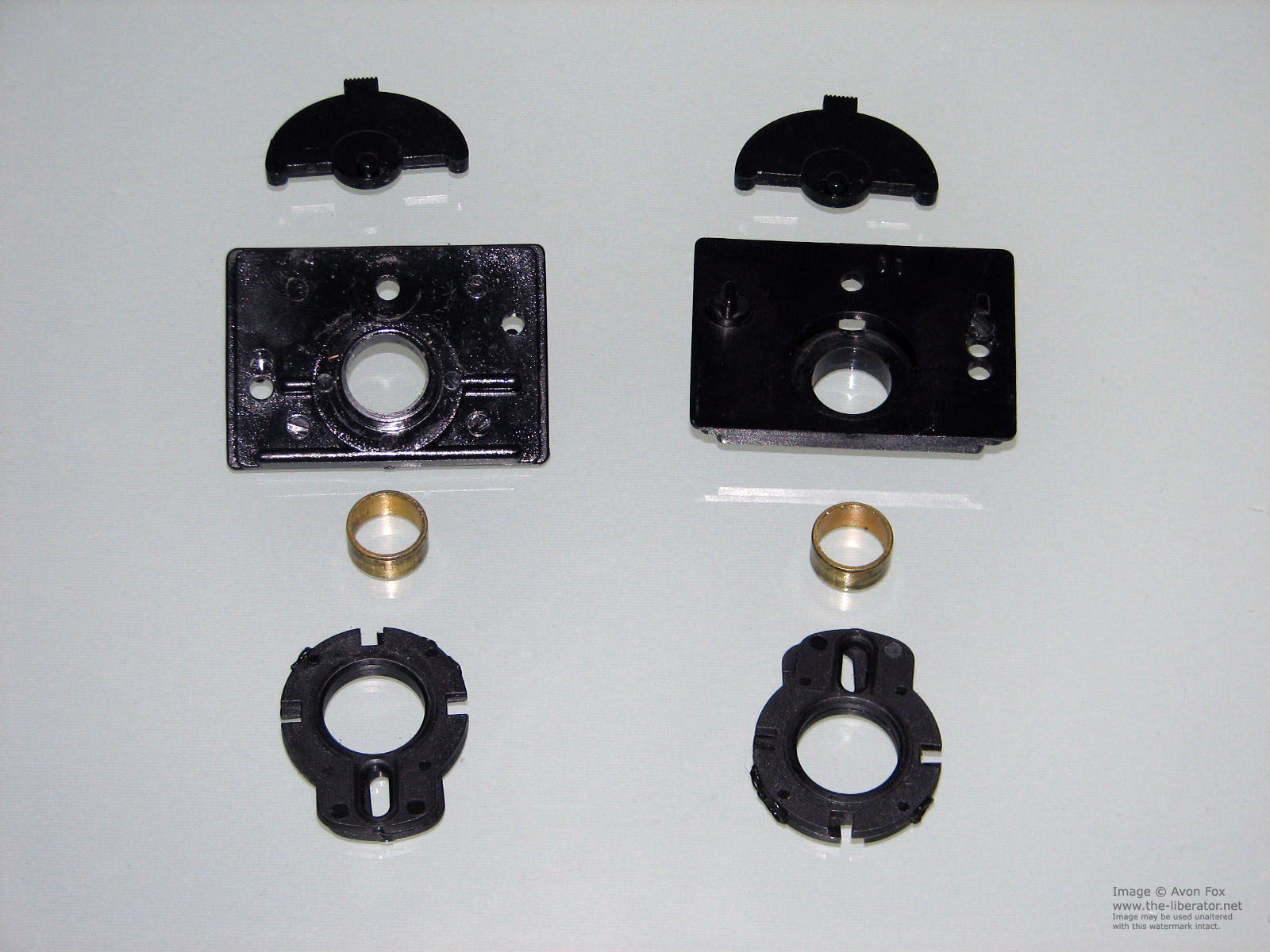

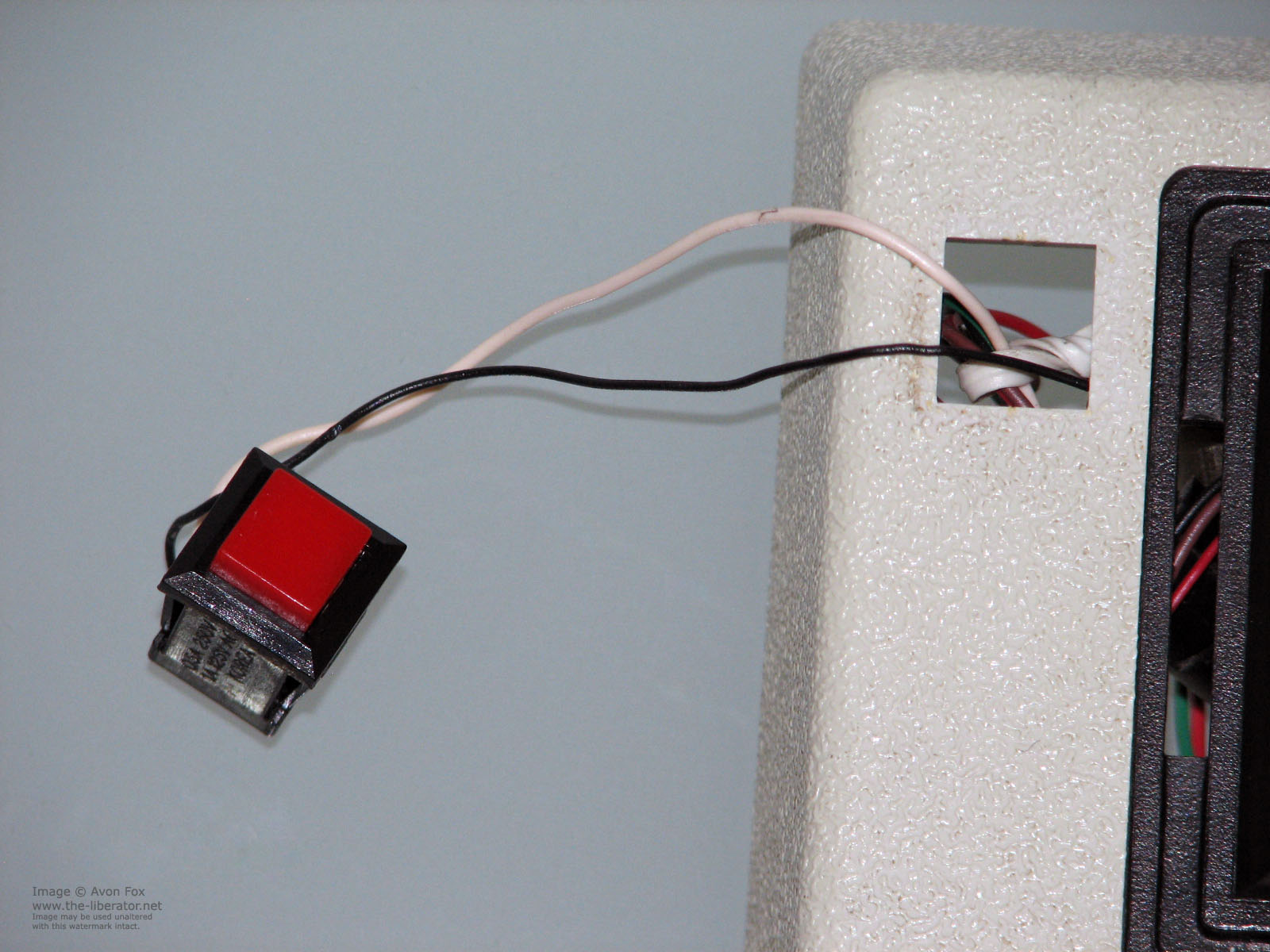

tandy trs-80 deluxe joystick levers rods   tandy trs-80 deluxe joystick parts tandy trs-80 deluxe joystick pots  tandy trs-80 deluxe joystick pot   tandy trs-80 deluxe joystick shell casing  tandy trs-80 deluxe joystick button switch

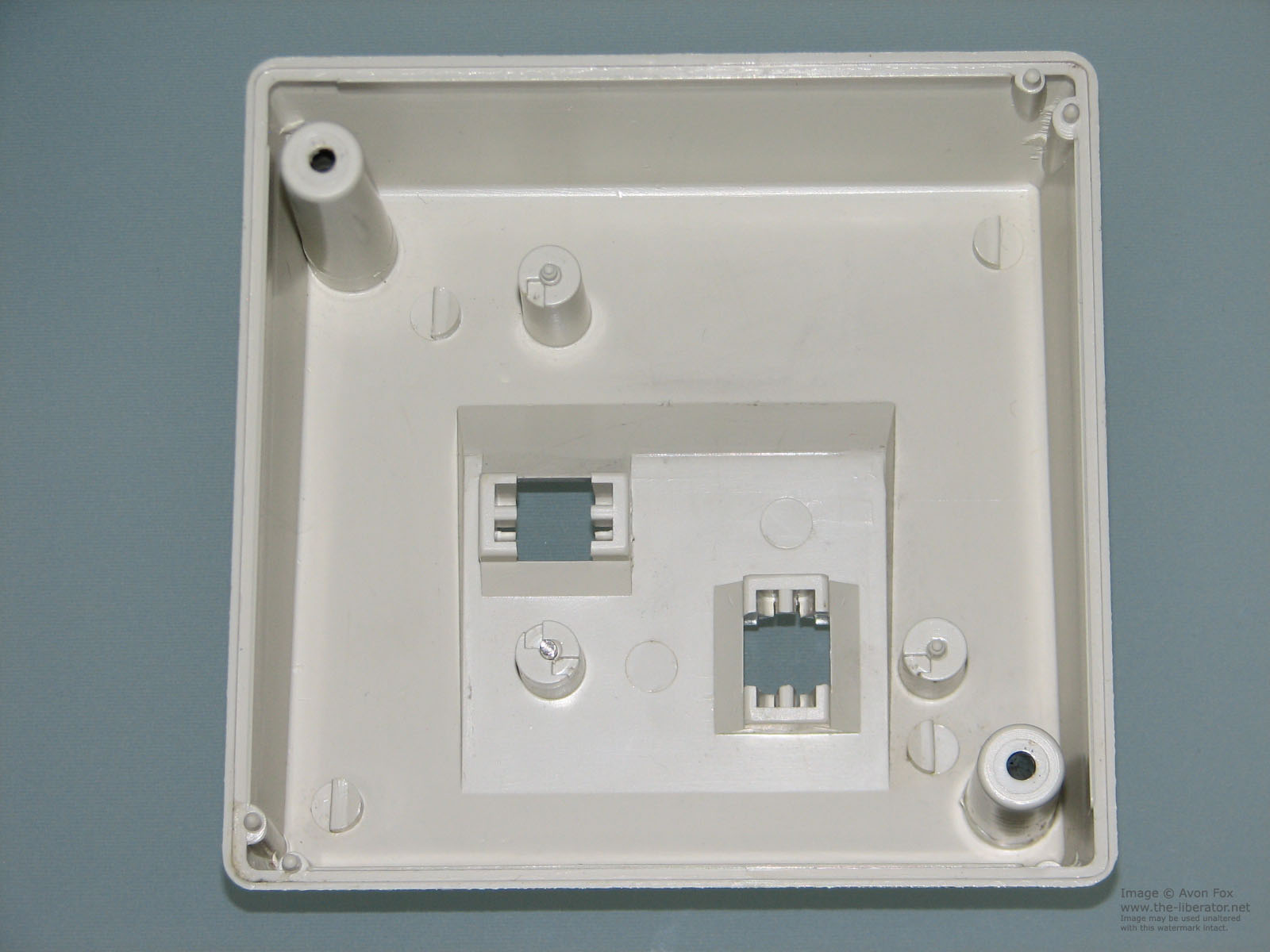

 tandy trs-80 deluxe joystick shell case bottom
