Sony PlayStation (PS1) PAL Model SCPH-1002



Details specific to model SCPH-1002 at the bottom of this text.

The Sony PlayStation.... the game console that almost wasn't.

Back in 1986 Sony and Nintendo were in bed together creating a CD ROM based add-on for Nintendo's Super Famicom / Super Nintendo Entertainment System (SNES) that was loosely dubbed the 'SNES-CD'.

In June 1991 at the Consumer Electronic Show Sony presented the first look at the what was then called the 'Play Station' (with a space), a hybrid all in one CD ROM Super Famicom/SNES system. Unfortunately a day after it was unveiled, Nintendo broke their partnership with Sony in favour of creating a system with Philips and to top it off they'd be using the technology used to create the existing system.

To Sony President Norio Ohga this was astoundingly insulting and humiliating and he set Ken Kutaragi the task of creating a new console that would rival the one Nintendo and Philips were planning. Time went on, the project wasn't going great and was almost scuttled by doubting senior and older Sony executives. It was only Kutaragi reminding Ohga of the terrible insult Nintendo had exacted upon him that saved it. As part of its salvation the project was moved to Sony Music that's (at time of writing - 2011) financially separate from Sony.

Doing so prevented a souring of relationships between Sony and Philips over the development of the MMCD that eventually blossomed into what we now know as the DVD.

Nintendo tried to further impact the Play Station's release by filing a lawsuit in the US Federal Court stating that they owned the name 'Play Station'. The case was closed in the favour of Sony paving the way for the new Play Station to be showcased in 1991.

A further deal with Nintendo was agreed upon that saw the Play Station get a SNES ROM cartridge port but by 1993 the development of the Play Station had moved towards more current technologies so the port was removed. At the same time the space between Play and Station was also removed as a final cutting of ties with Nintendo.

The Sony PlayStation as we know it was first released to Japanese consumers in December of 1994 and almost a year later to North America, Europe and Australia. It was extremely successful and that saw it become the first game console to sell more than one hundred million units and production ran for eleven years.

Earlier models had issues with heat and the laser mount being too close to the power supply. This saw the laser's travel move out of alignment causing juddering during Full Motion Video (FMV) and eventually games to stop loading at all. The practical solutions were to put the PlayStation up onto its side or perch it upside down and these tricks often worked surprisingly well.

Licensed PlayStation game titles came on black CDs. The top surfaces are printed with the relevant game art, title, copyright information, etc. with the undersides glossy black. Much speculation about why this was done arose and many thought it was from of copy protection. In truth, it just looked cool.

While the PlayStation launched at a reasonable price in the United States, consumers were burnt in other parts of the world such as Australia where the unit went on sale for $700 - $800 AUD (approx $670 - $770 USD) depending on the retailer. The price then dropped only a few months later to around $400 AUD before dropping again. It's speculated this made Australian consumers disinclined to rush to purchase new console hardware in the following years before waiting to see what would happen with the price. This pricing concern was reinforced with early sales of the Microsoft XBOX being far more expensive than the console retailed for once initial sales had been made.

There's plenty of good sites on-line detailing the PlayStation's system specs., however safe is to say that it was and is an amazing console that truly deserves the appreciation it's given both in hardware and supporting software titles. With its small footprint and robust design, enthusiasts will be able to keep and enjoy their units for years to come. Due to the relative ease that the console can be modified to play unlicensed and pirated software, its modern day life has been extended even further.

Model SCPH-1002 (the final number indicates the county released: '2' for Australia)

The PlayStation was released in numerous different revisions that mainly focused on the removal of unused, unpopular or expensive to supply ports. Initially the PlayStation had a SVideo jack but later revisions saw this, the RCA, Parallel and Serial I/O ports. The SCPH-1002 pictured below shows the Parallel, Serial I/O and RCA ports. The Parallel port was to be used for additional hardware but this never eventuated. It was more commonly used for unlicensed cheat carts and add-ons that would bypass copyright and regional locks-outs so the port was removed.

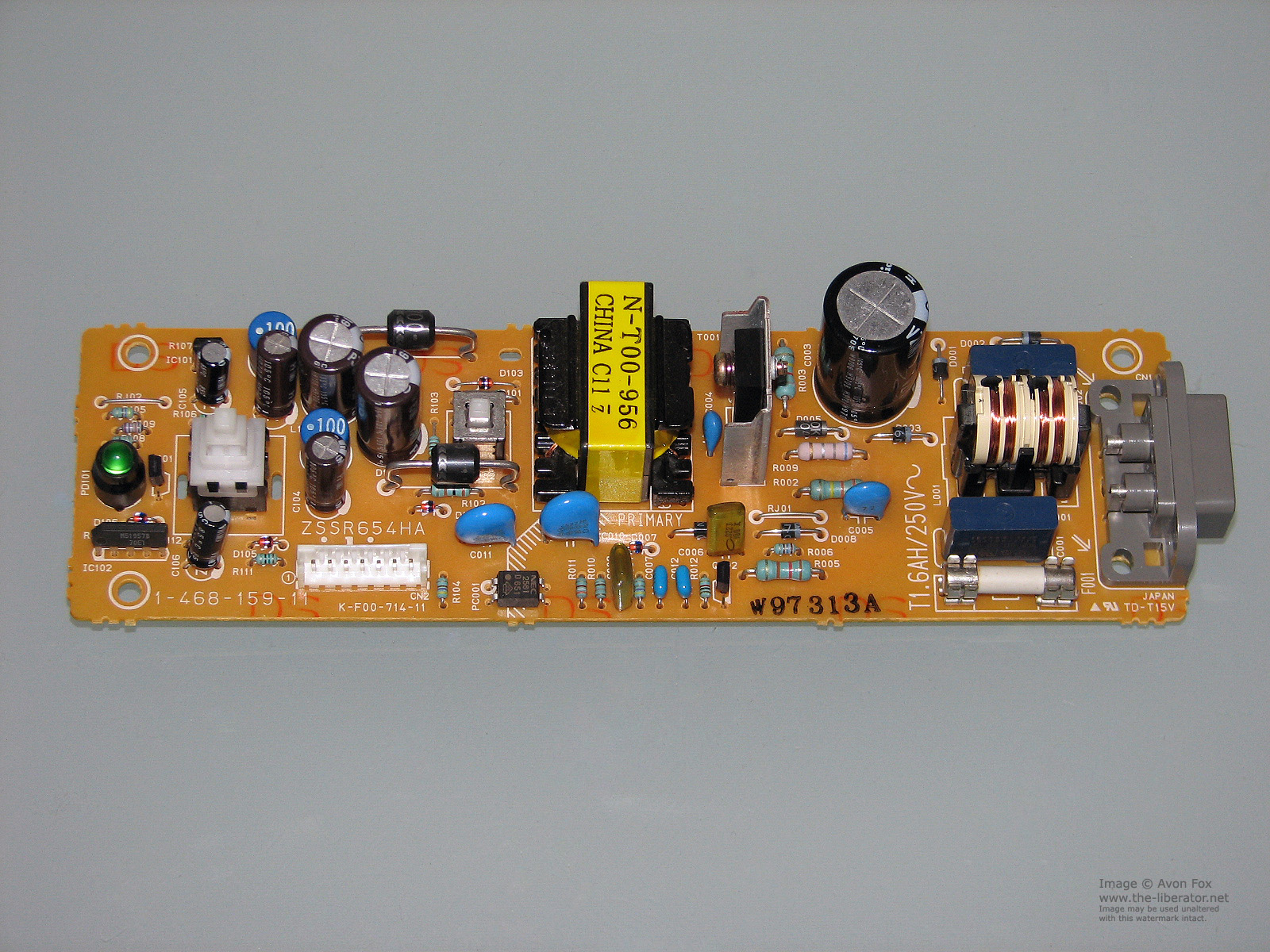

Note below there are two PSU and motherboard versions shown for the SCPH-1002. They are stamped: S-P121 / 1-658-467-22 and S-XMB / 1-658-467-23.



Sony PlayStation (PS1) PAL Model SCPH-1002

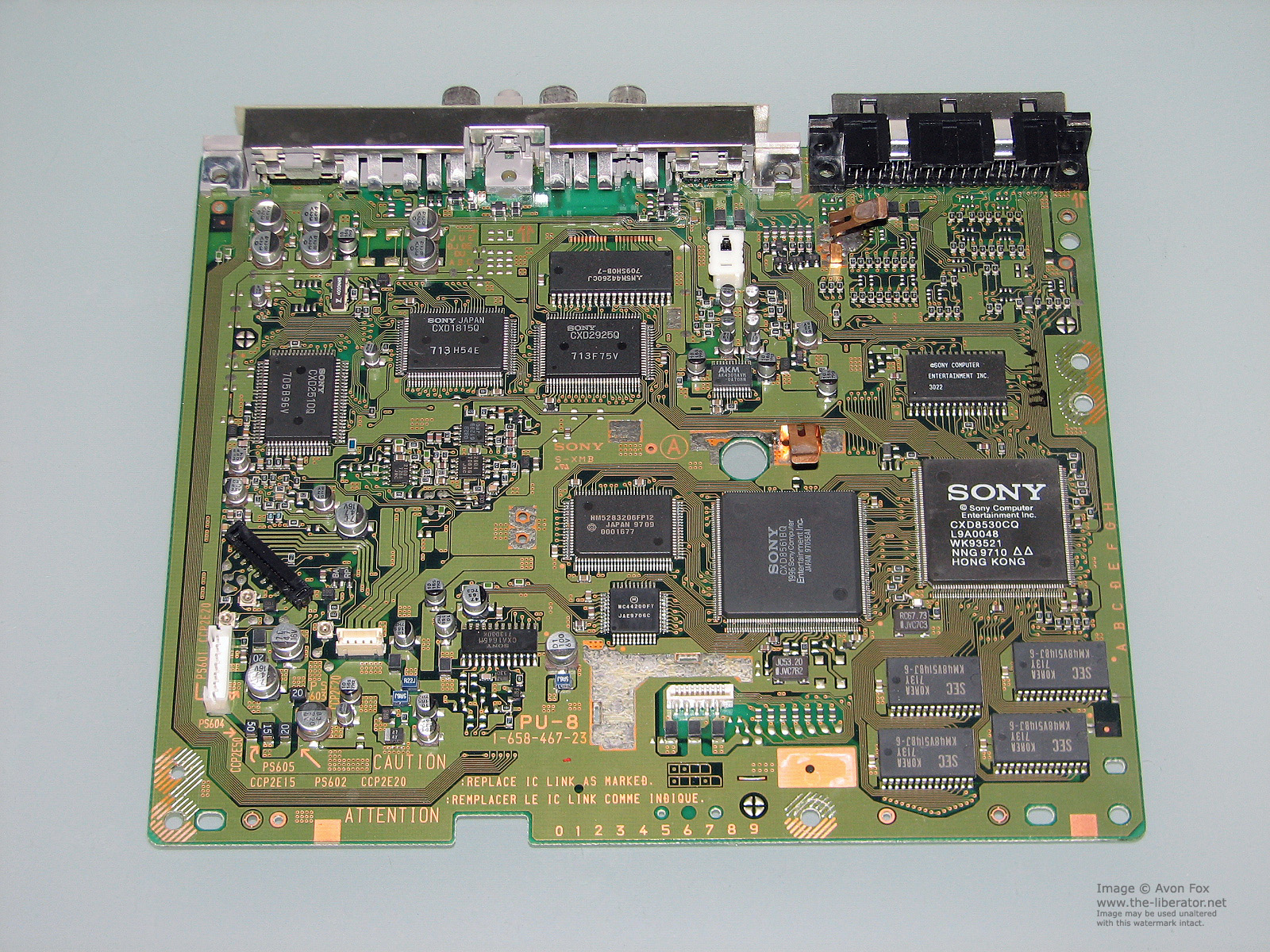

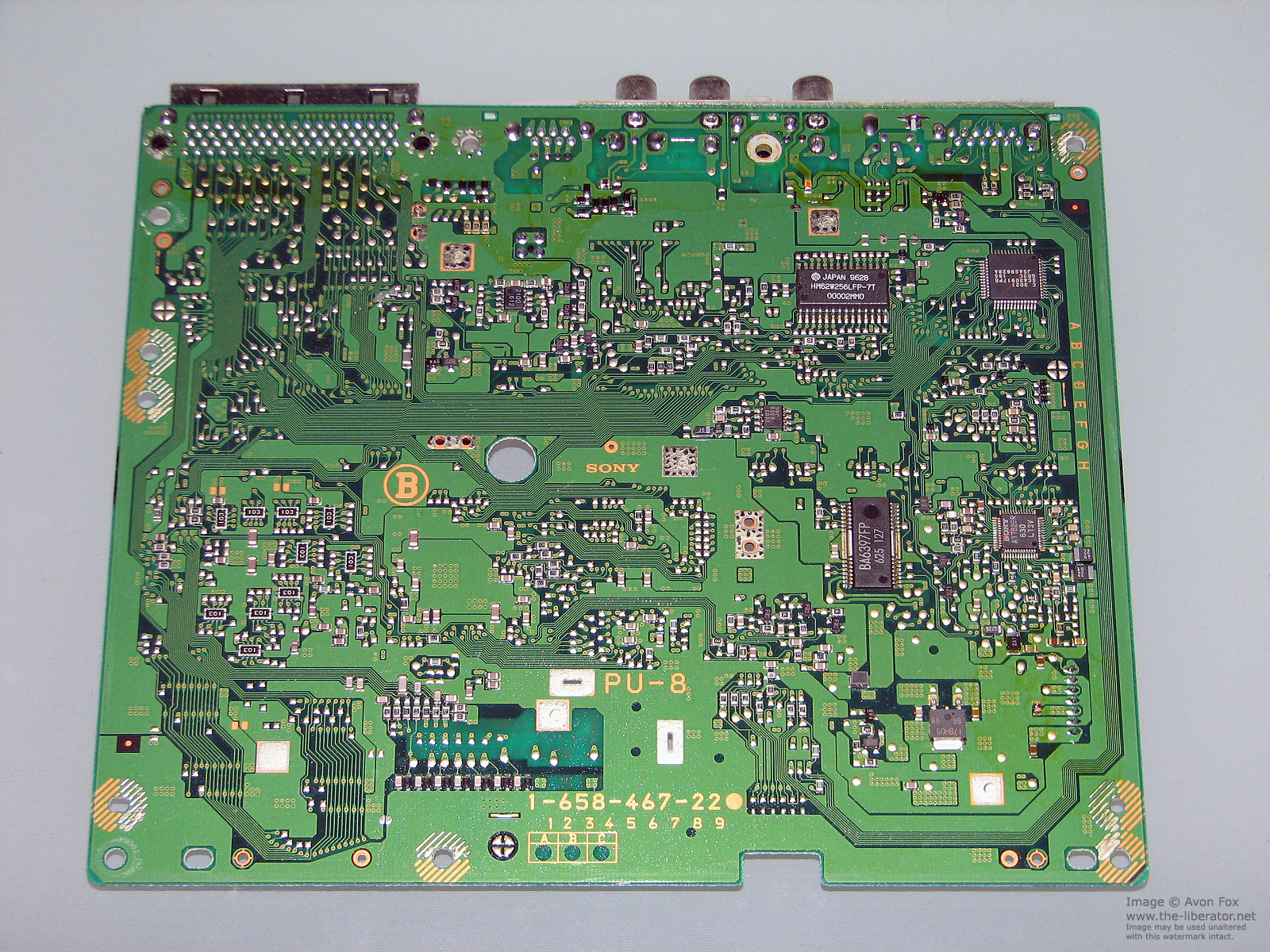

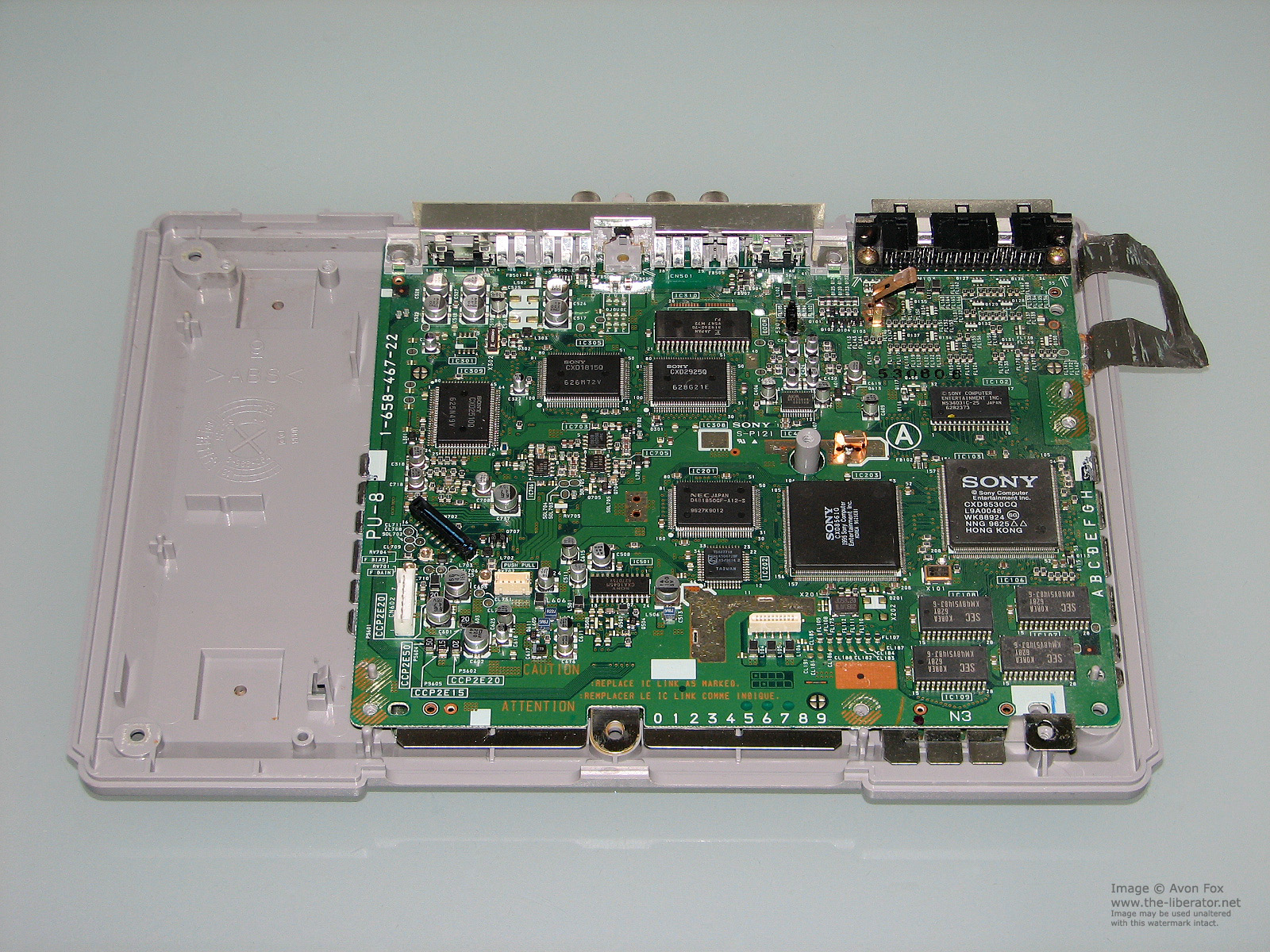

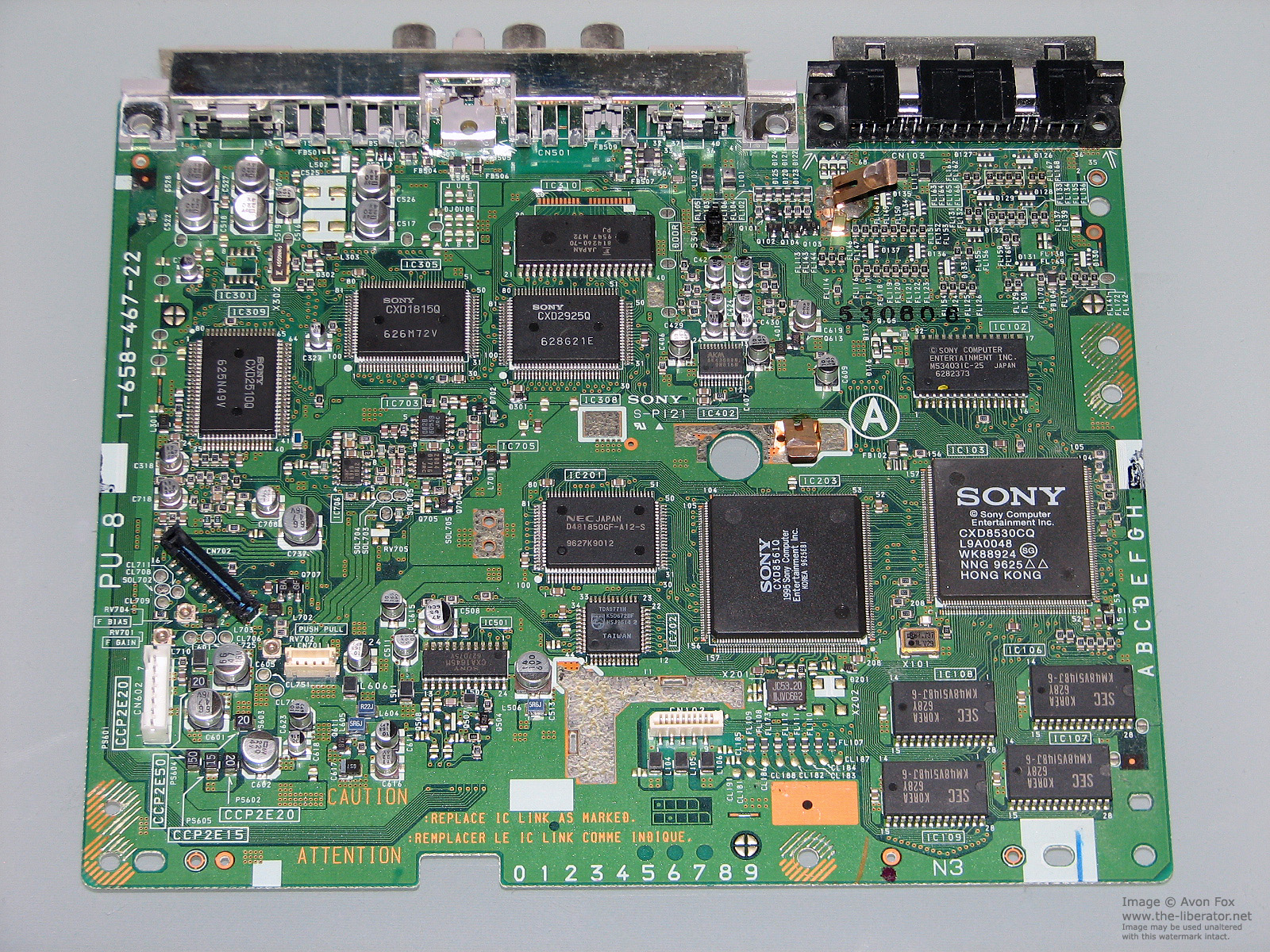

S-P121 / 1-658-467-22 Motherboard

Sony PlayStation PAL SCPH-1002

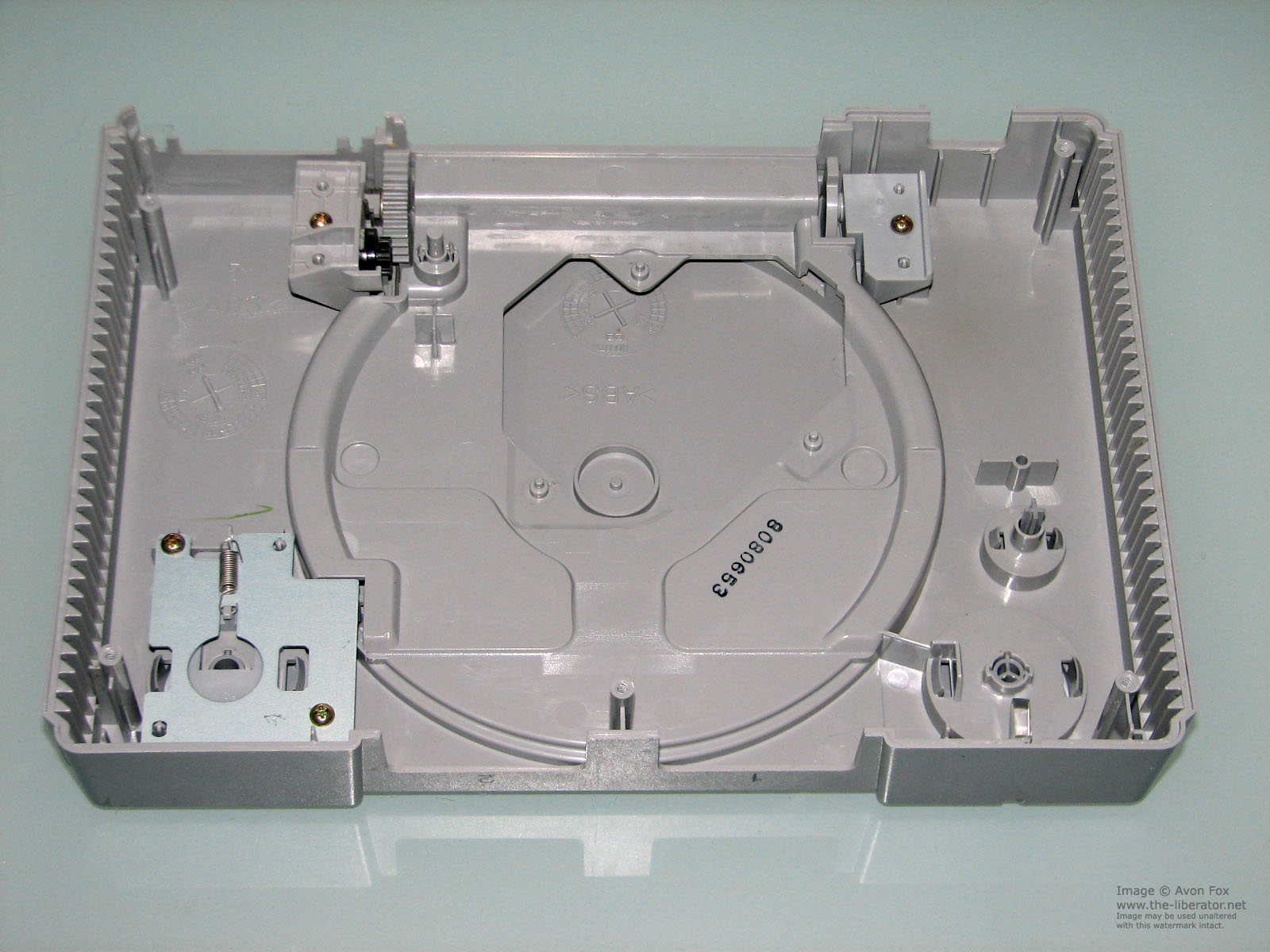

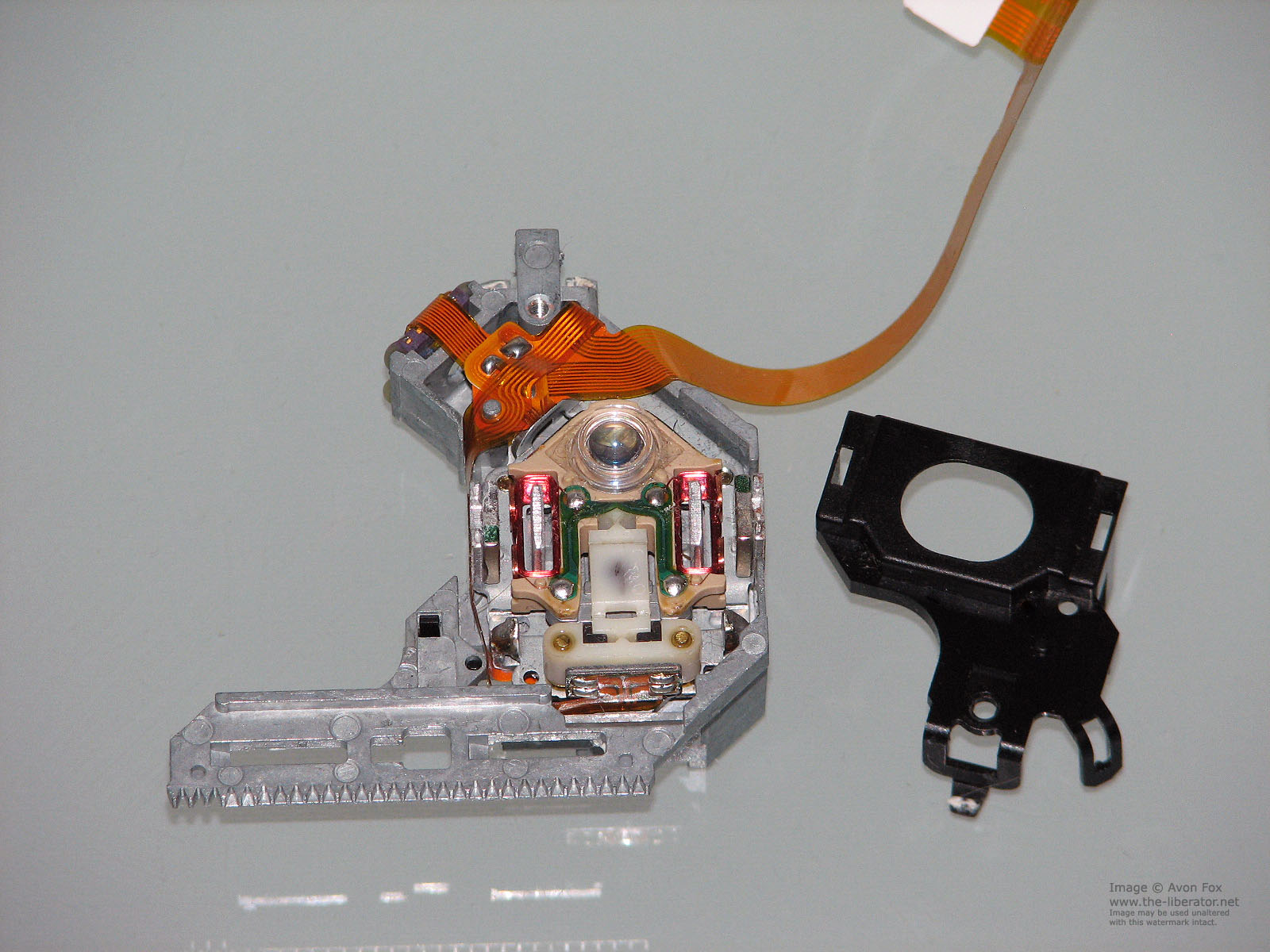

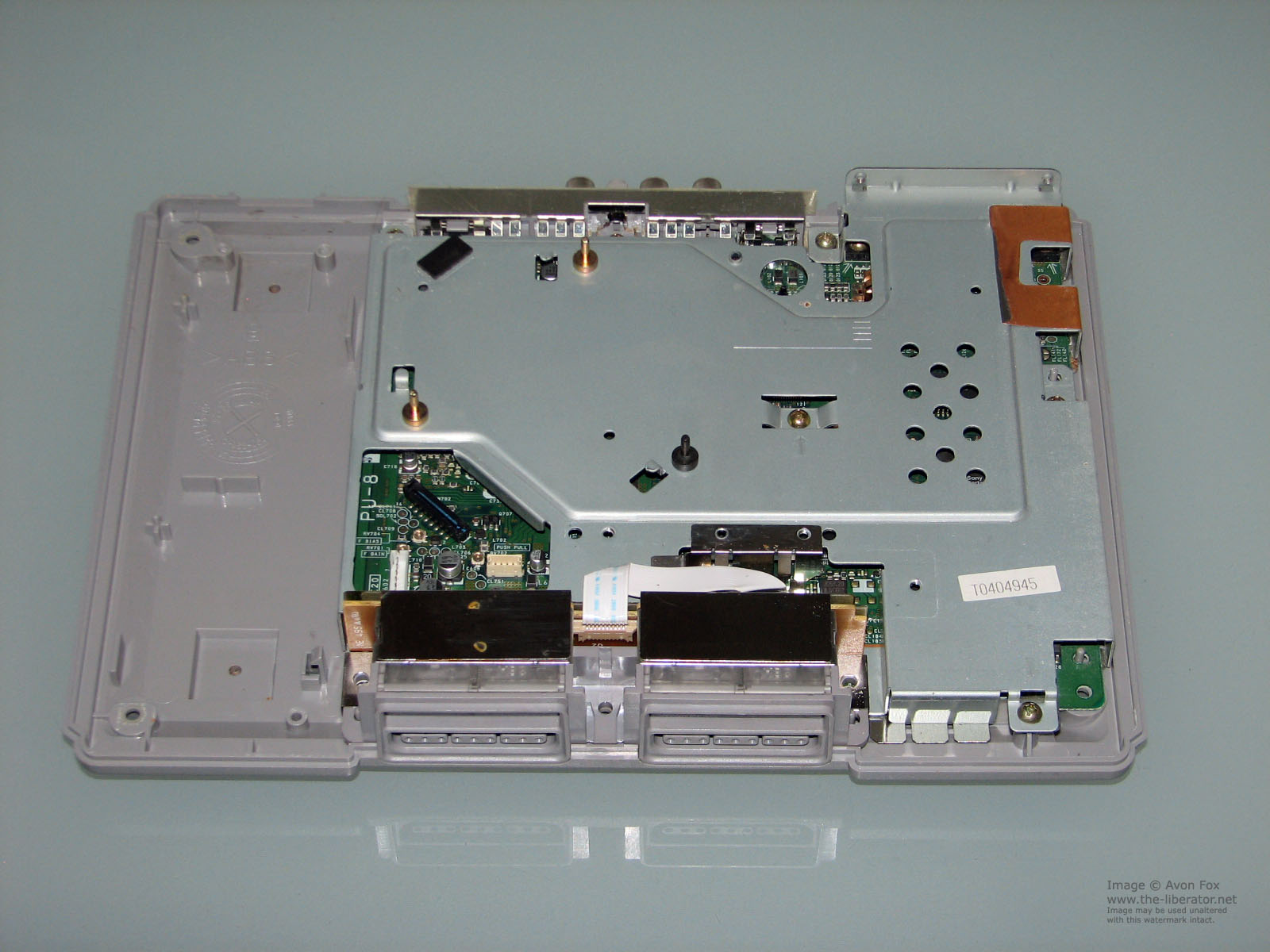

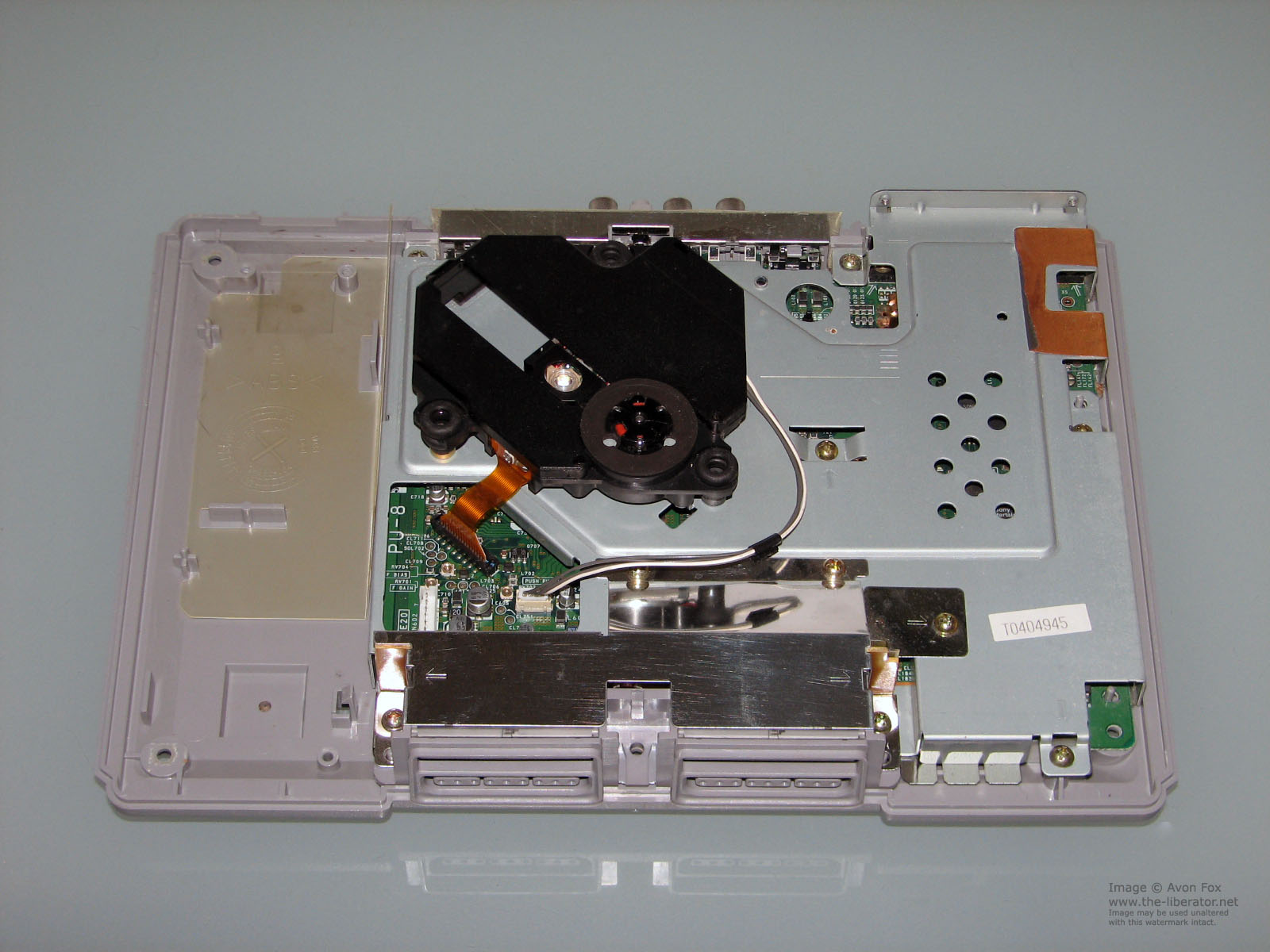

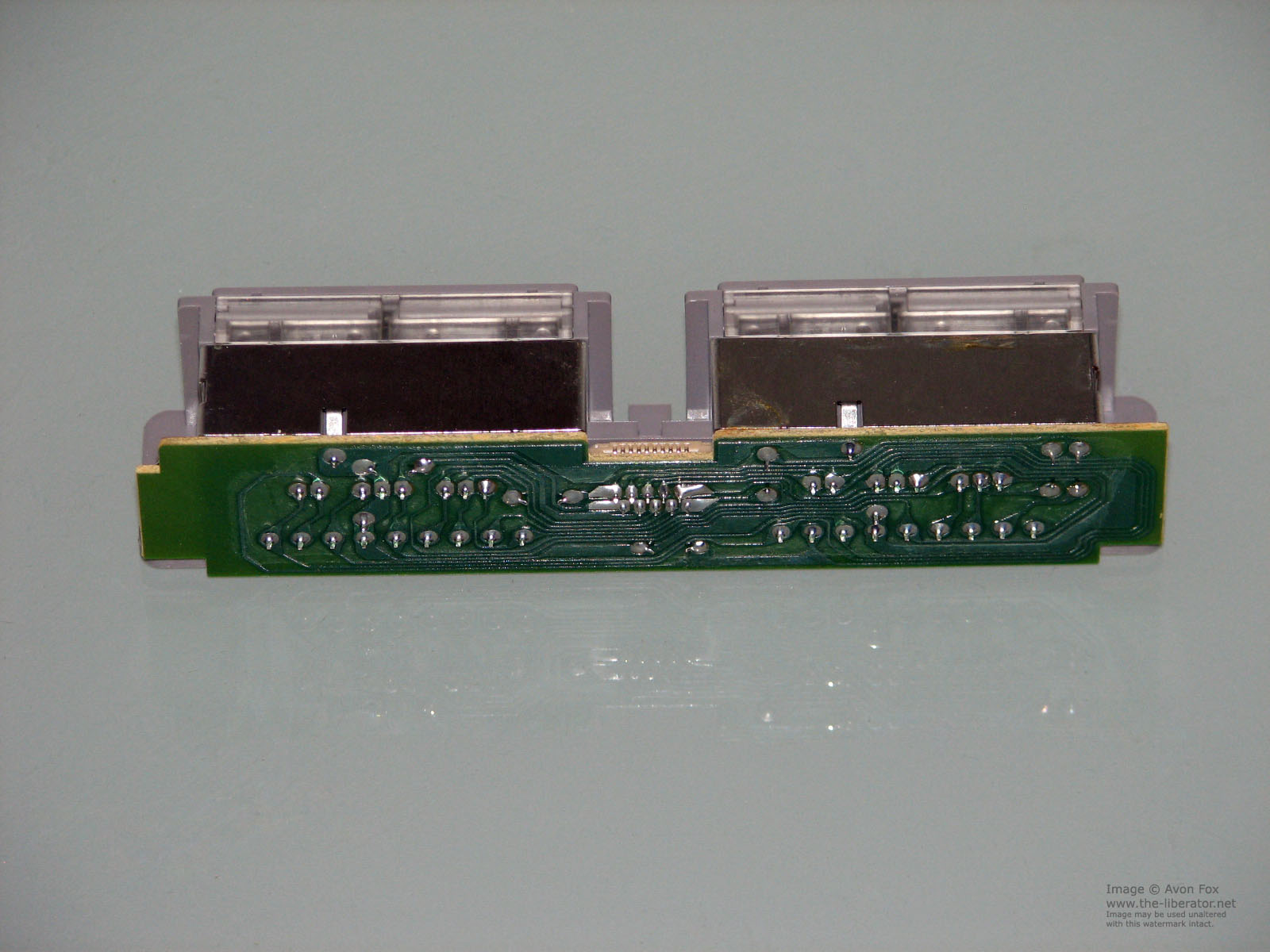

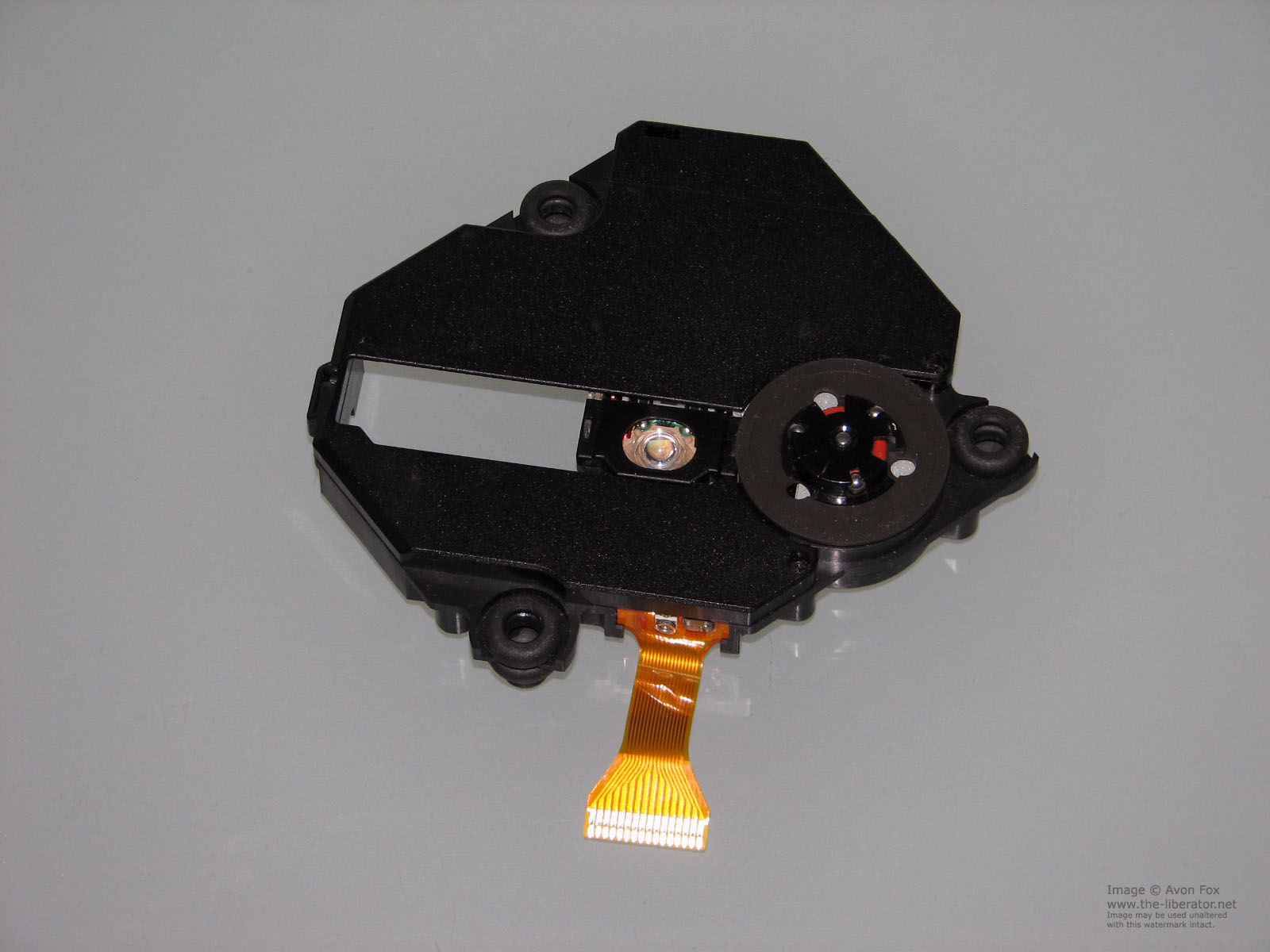

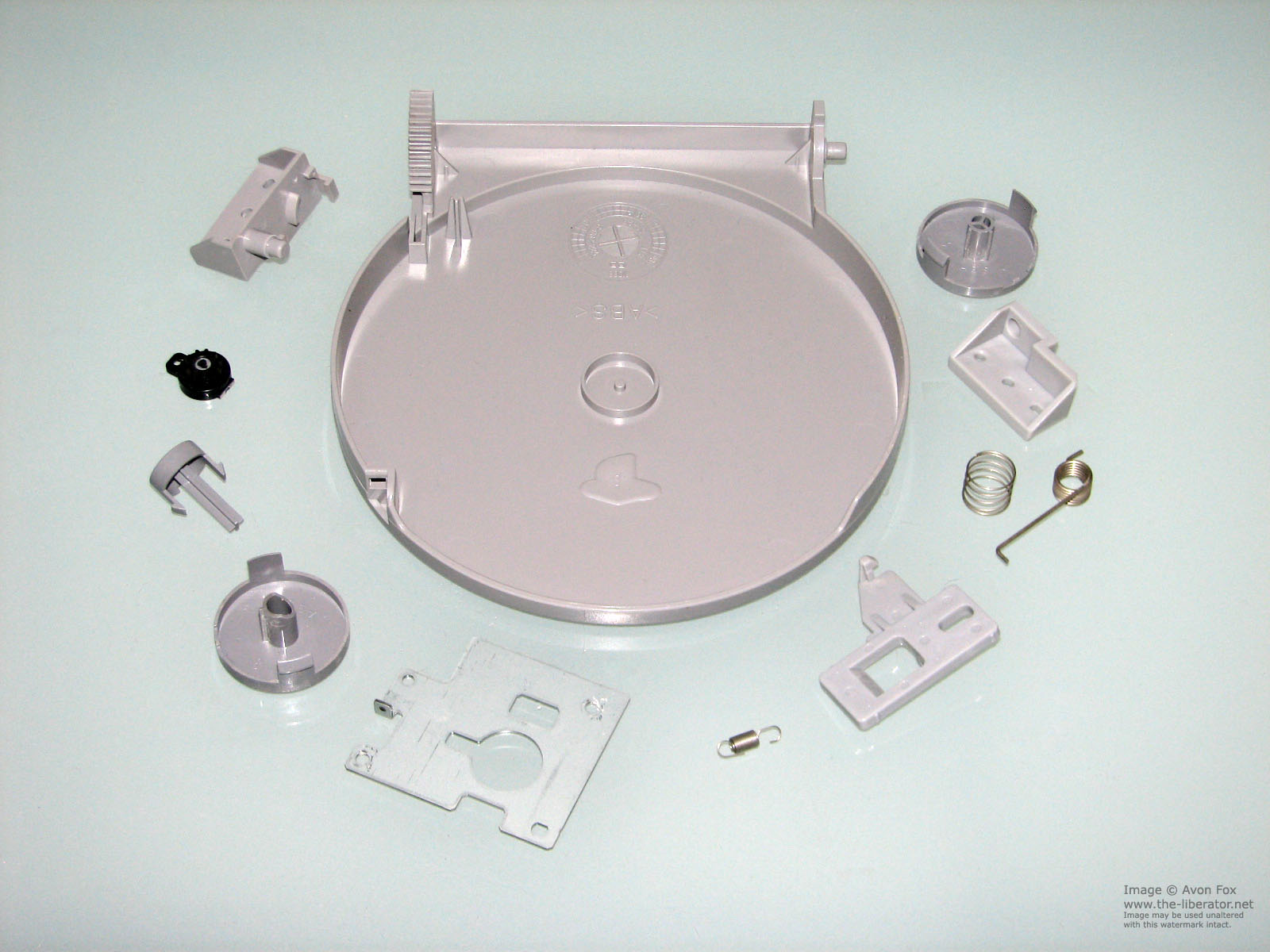

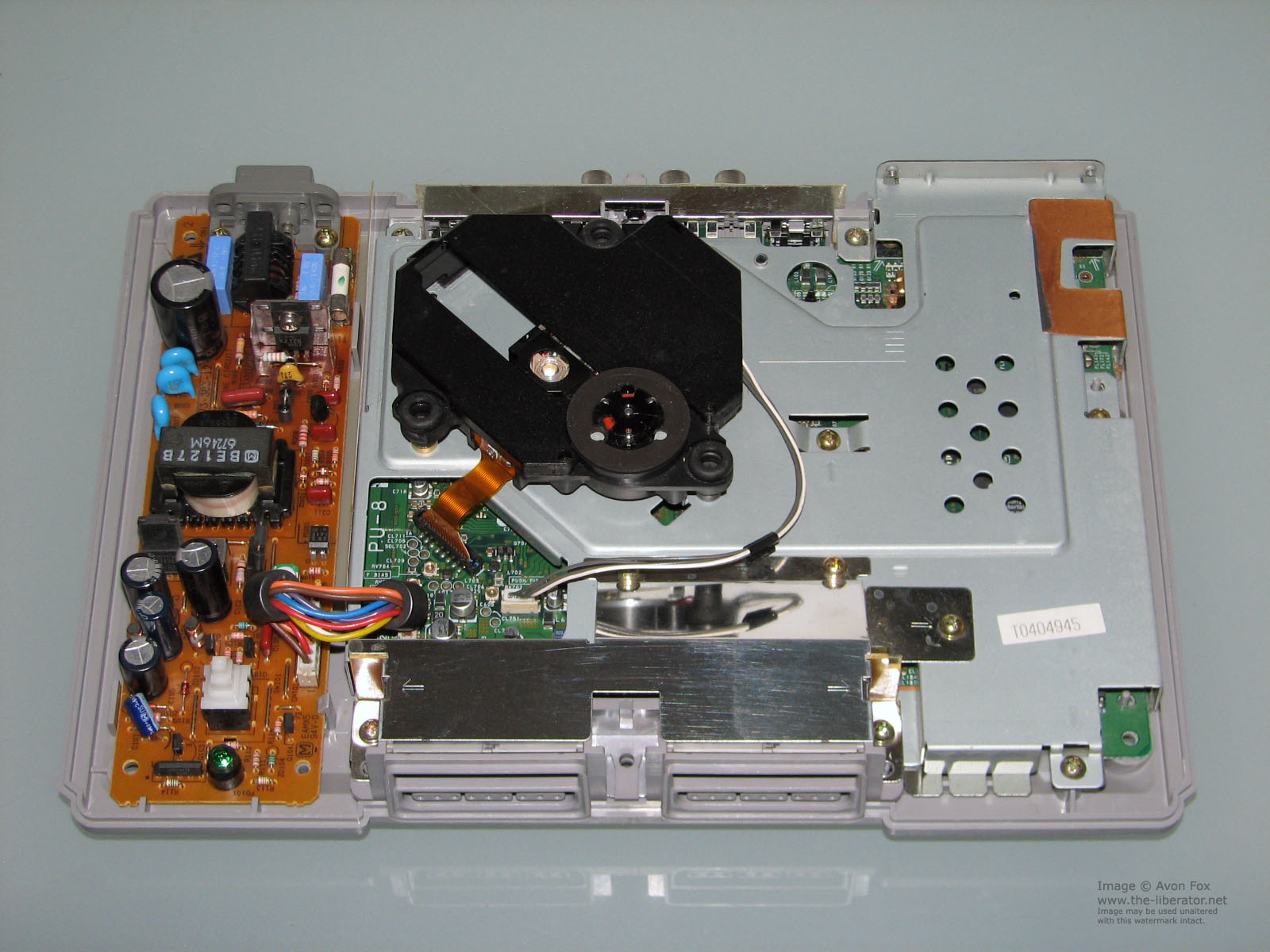

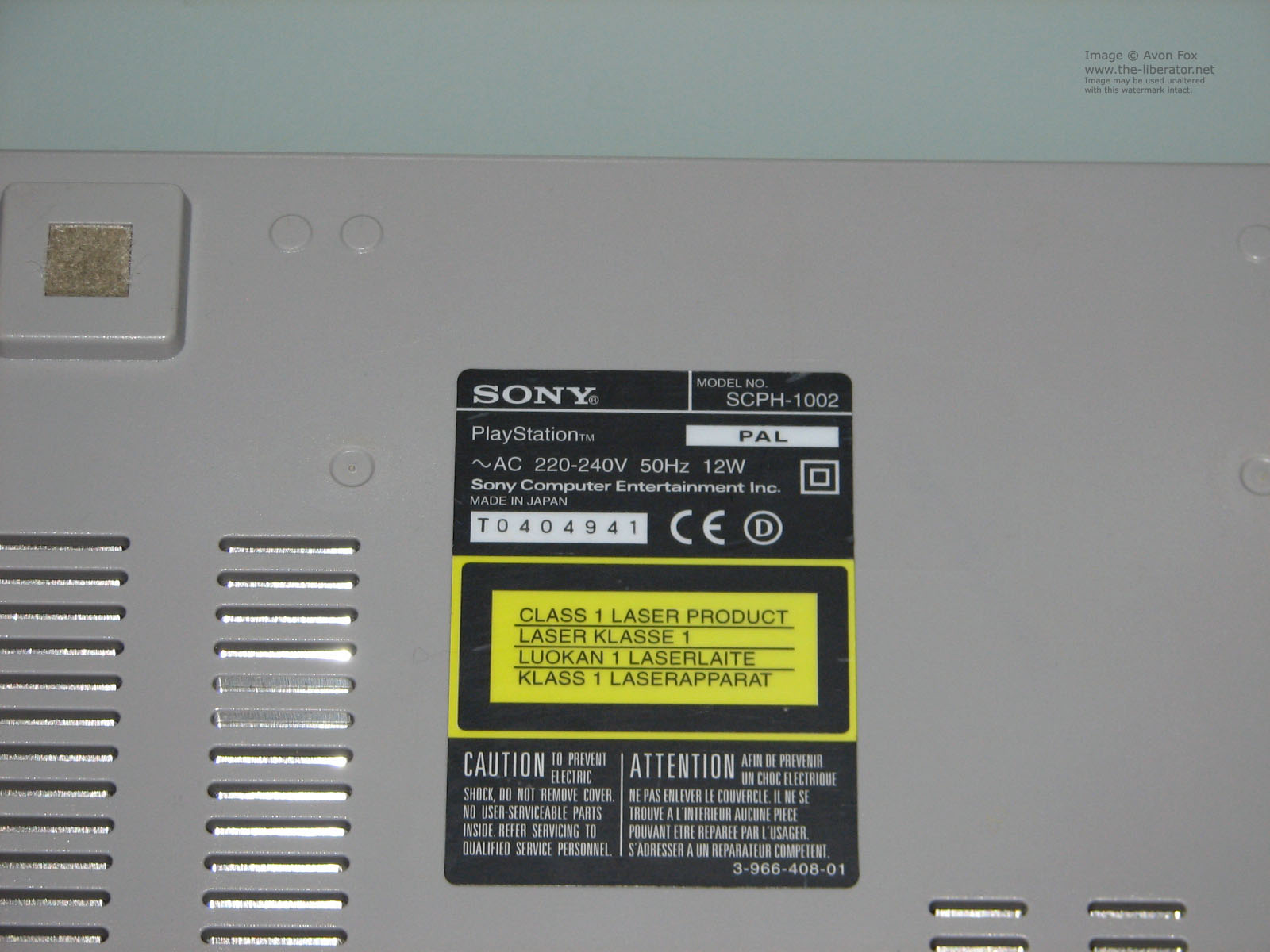

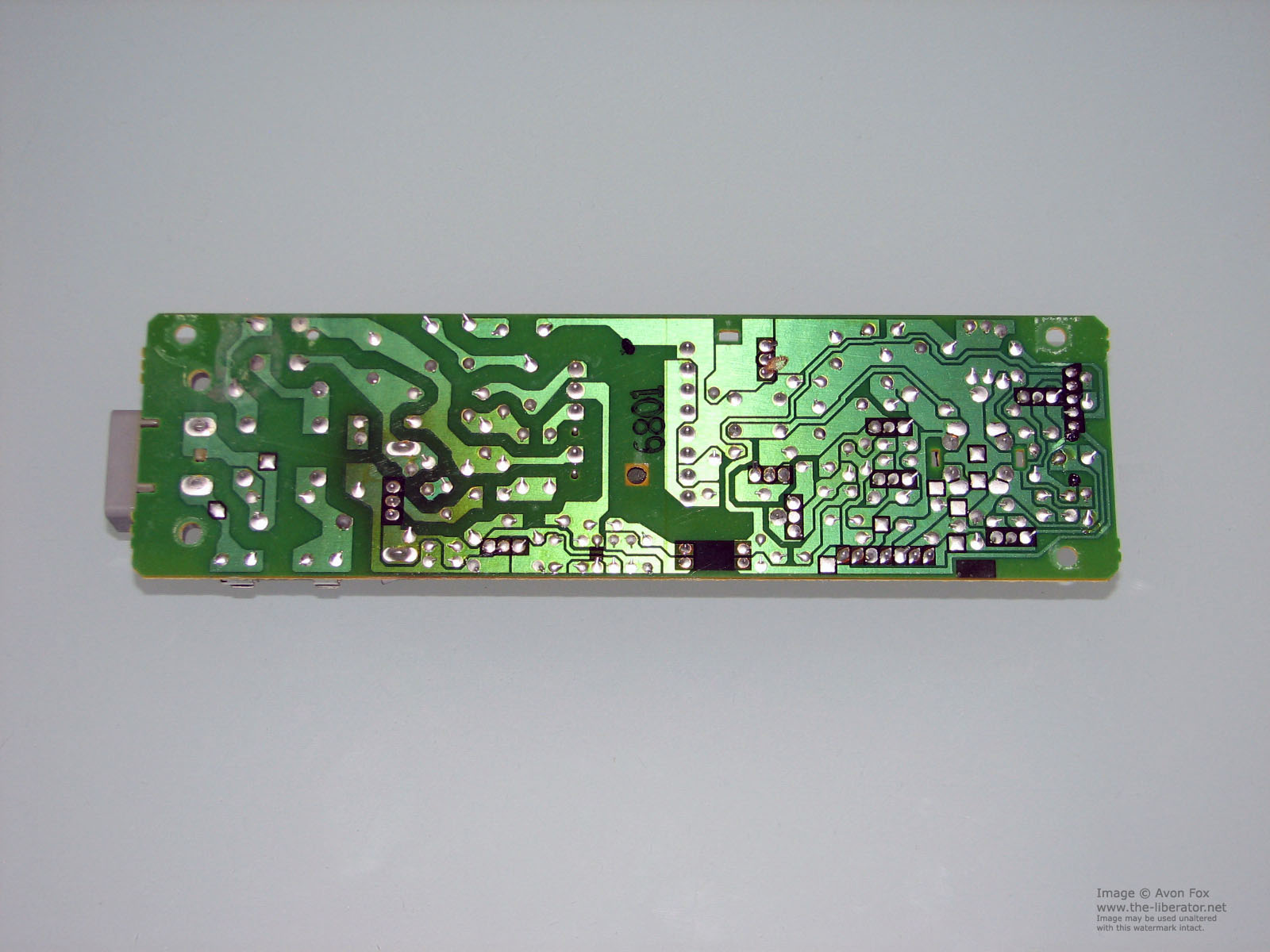

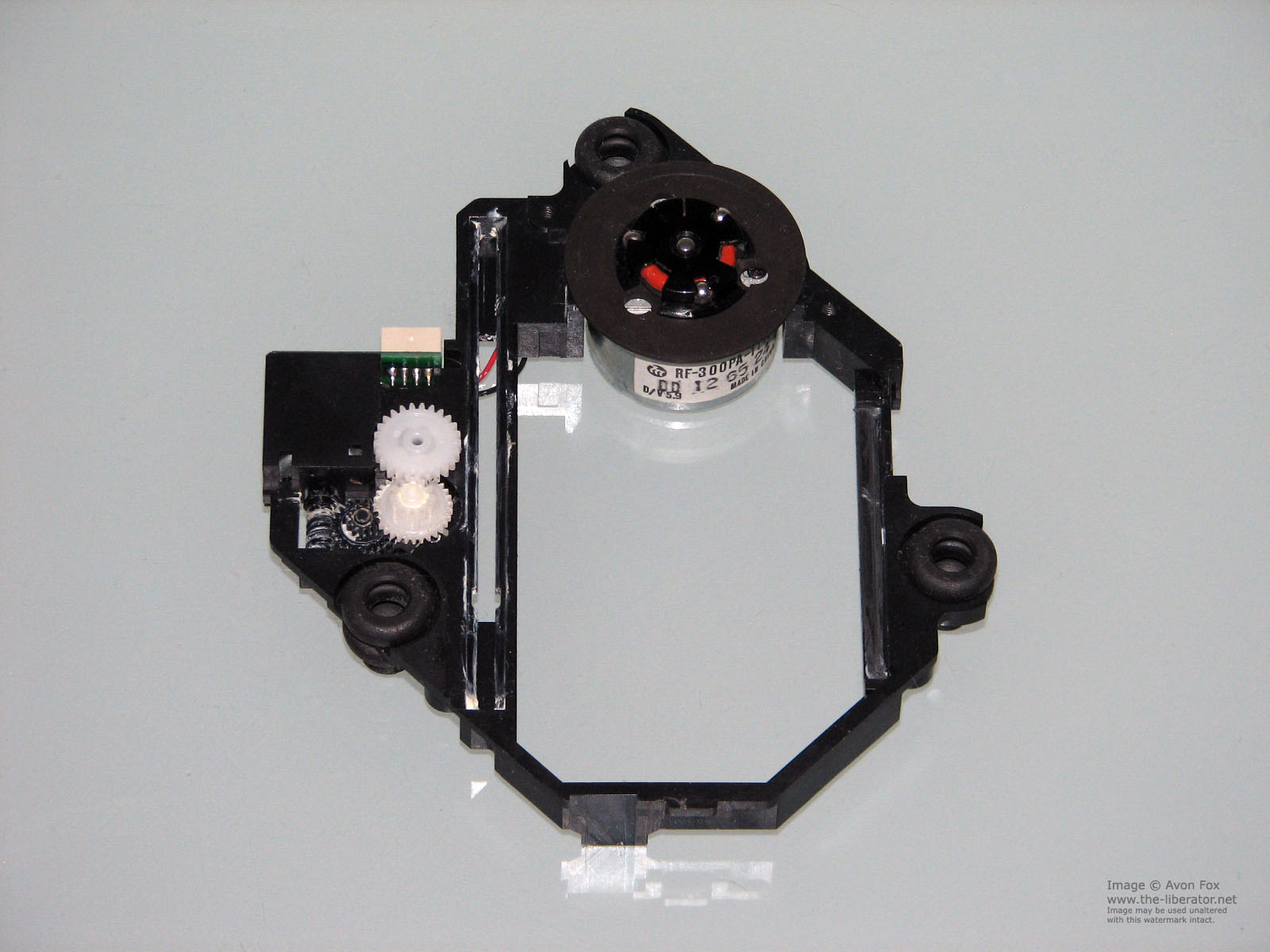

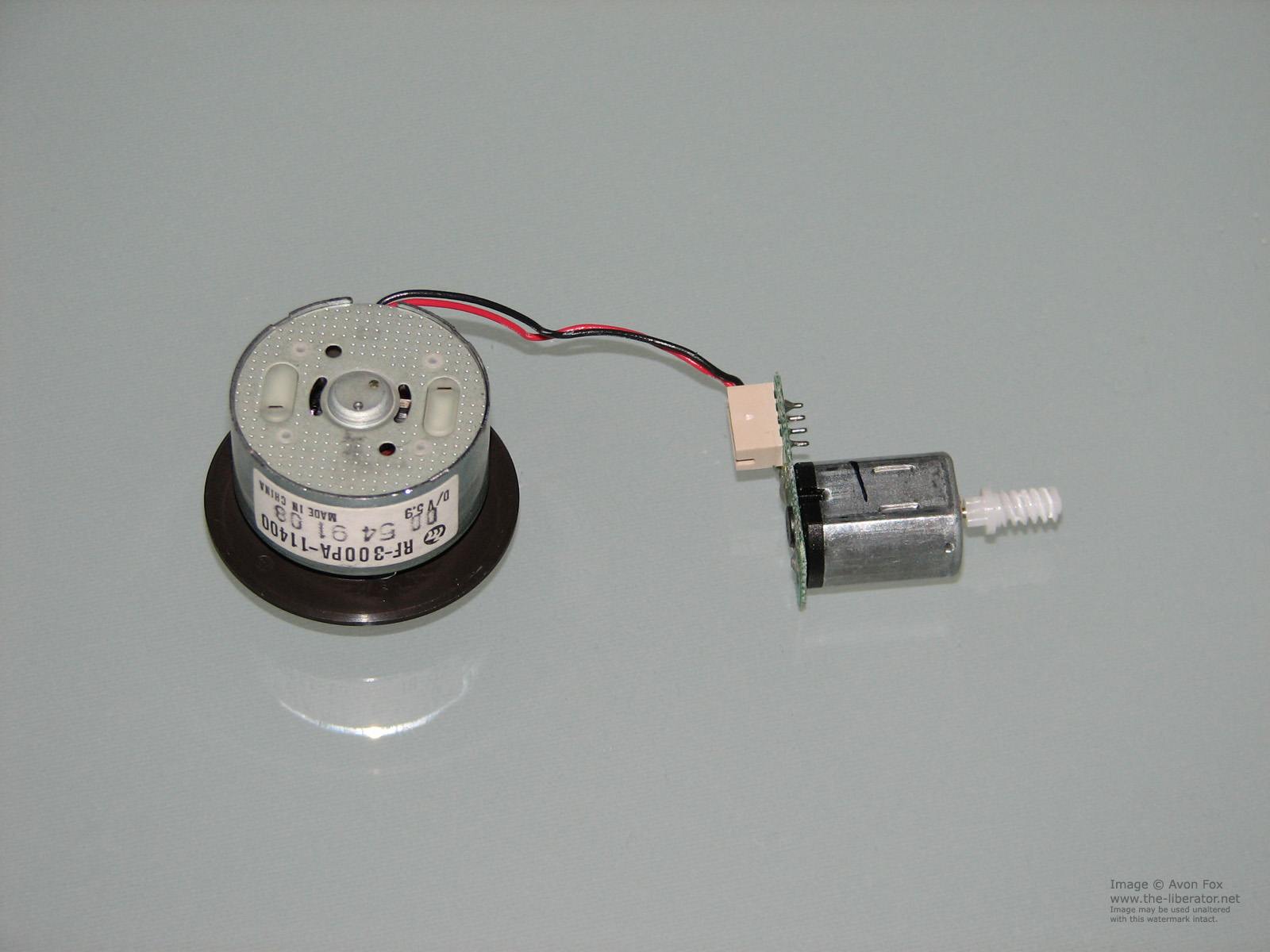

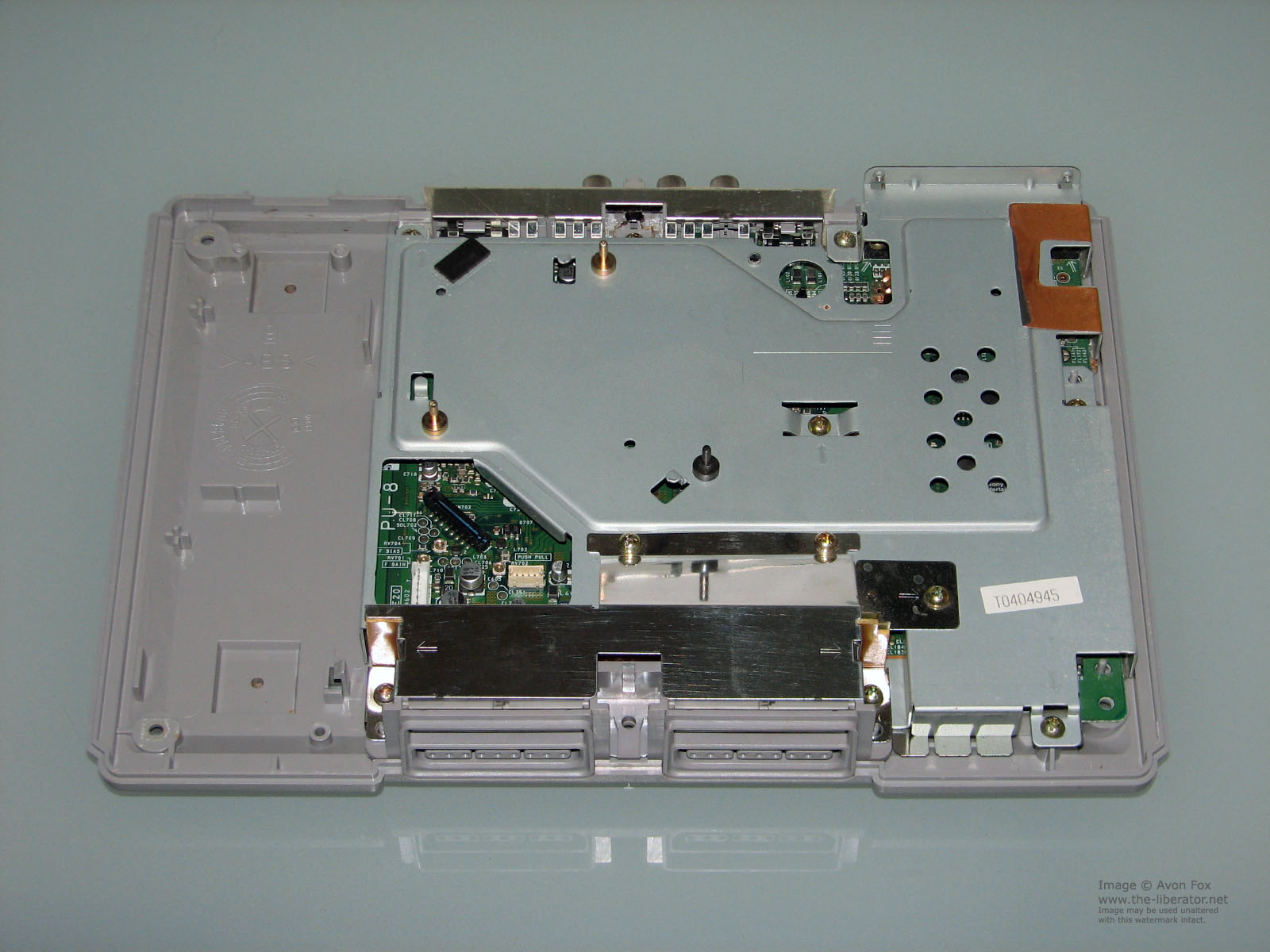

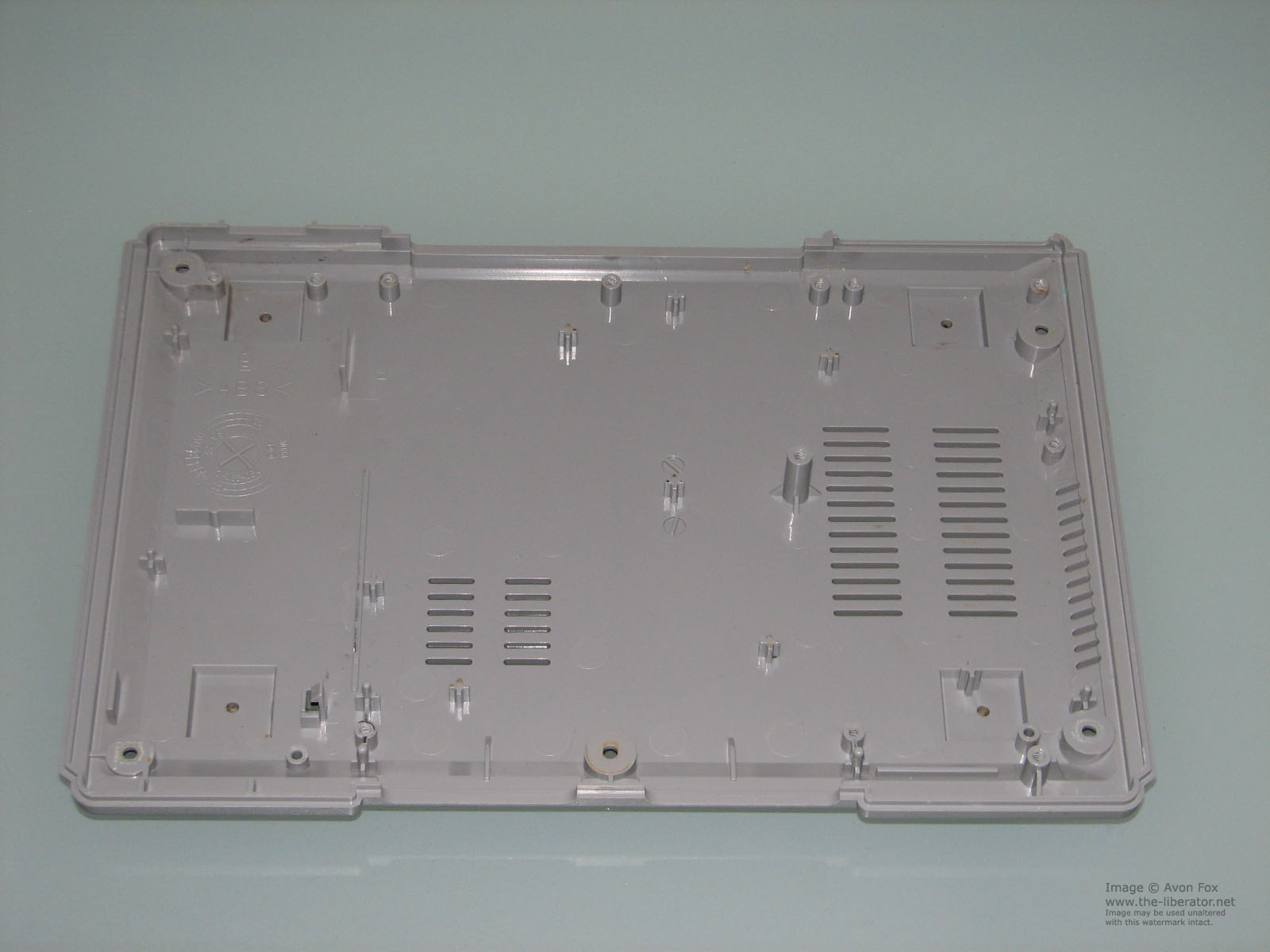

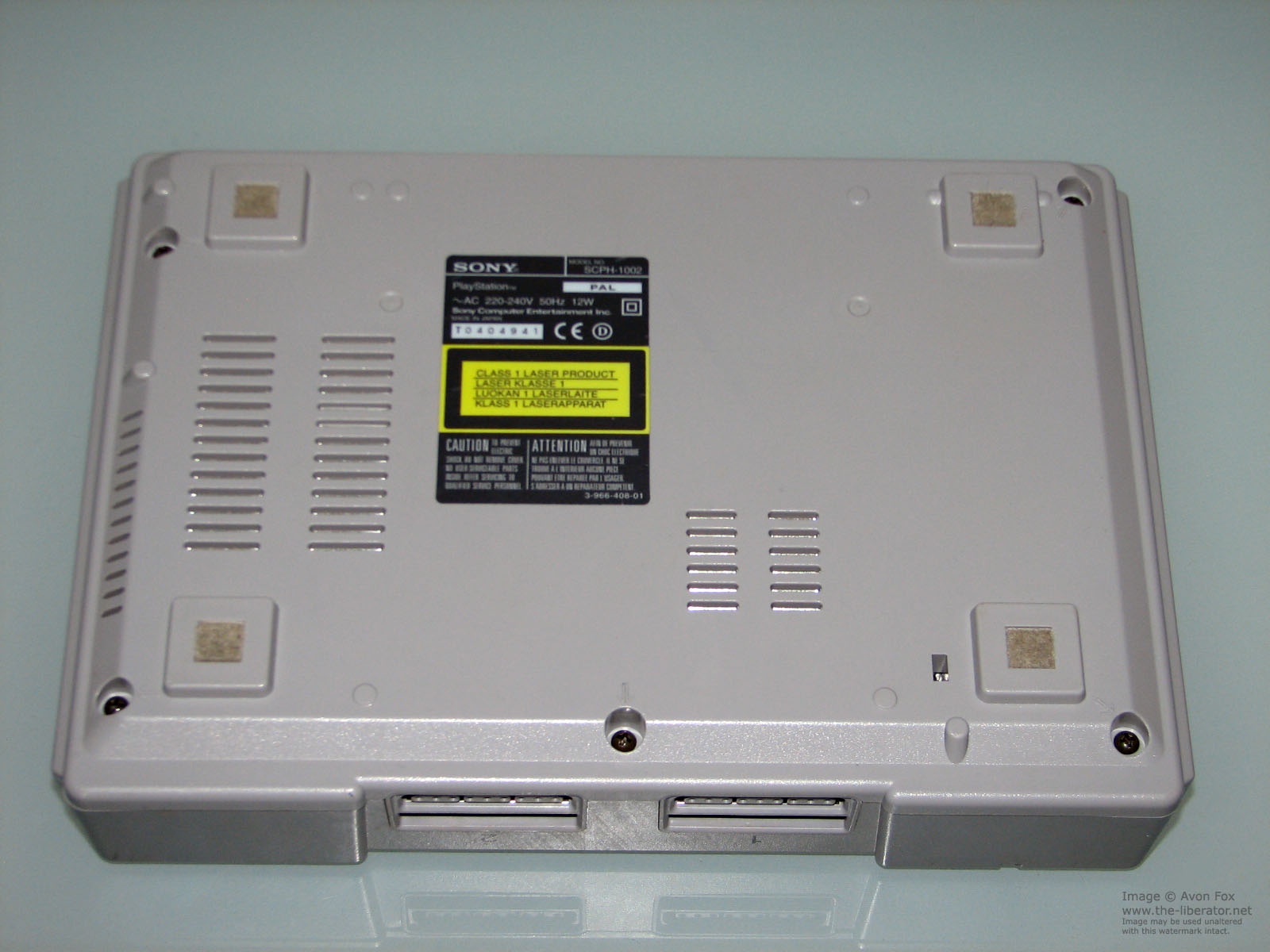

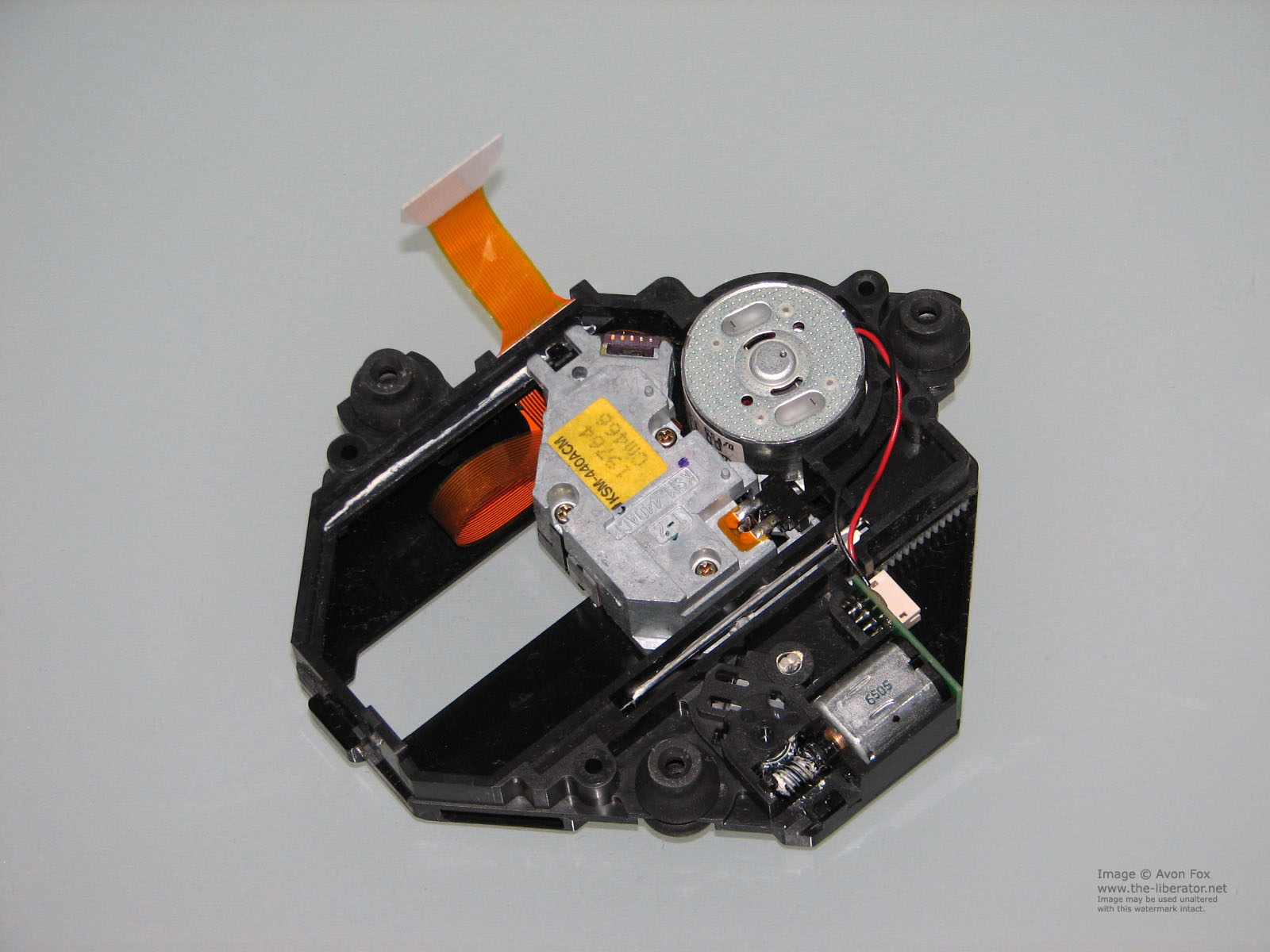

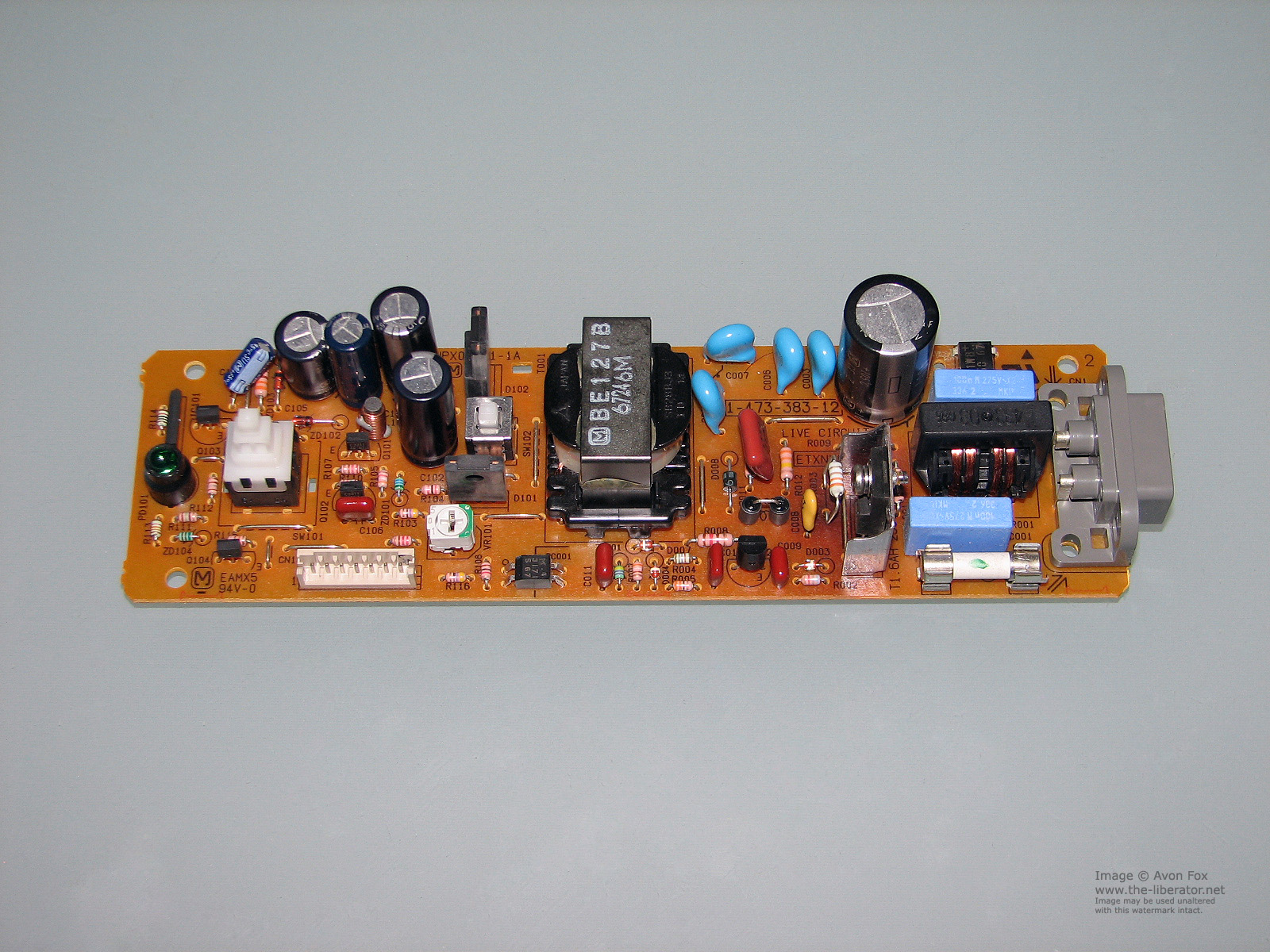

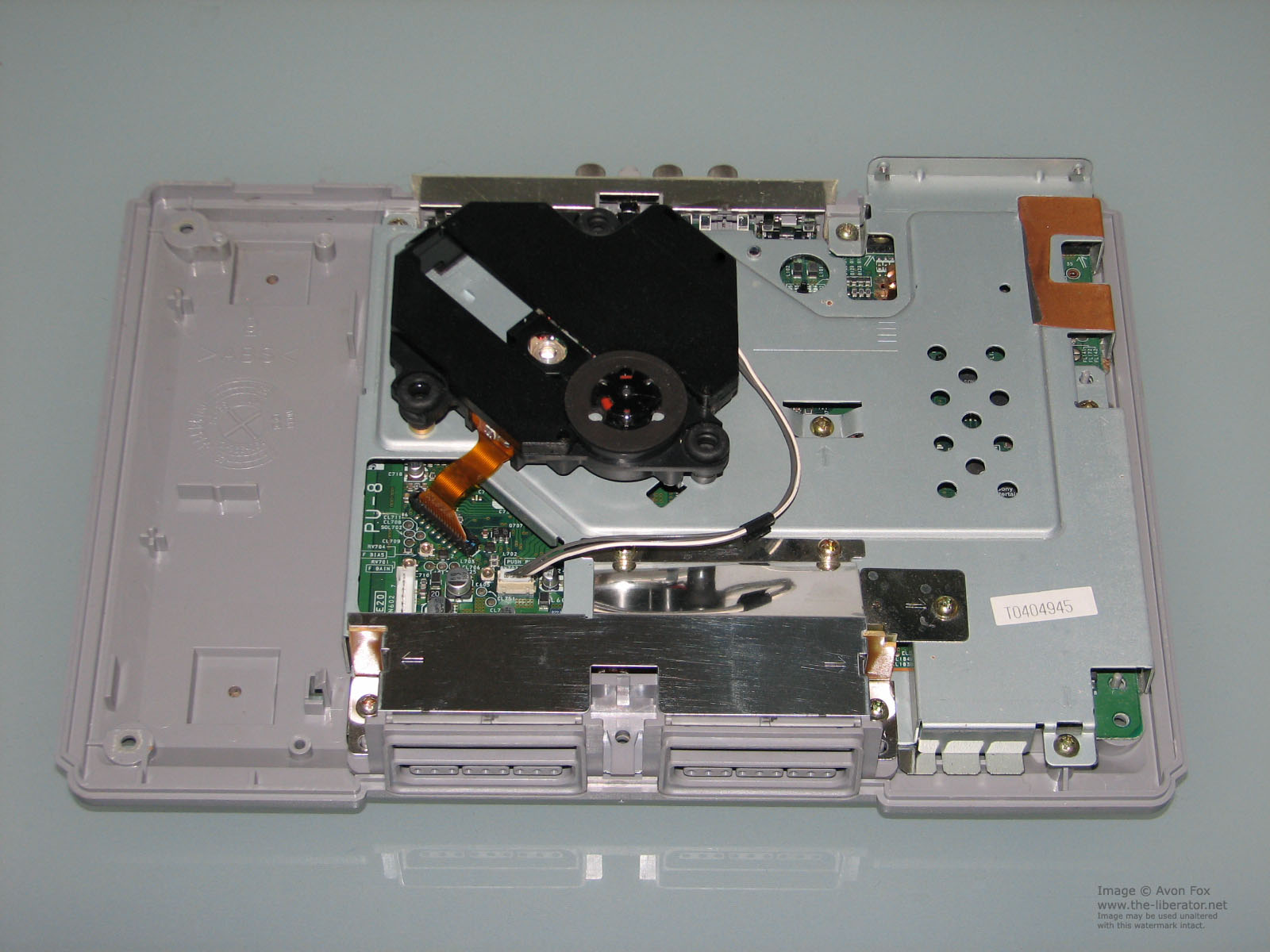

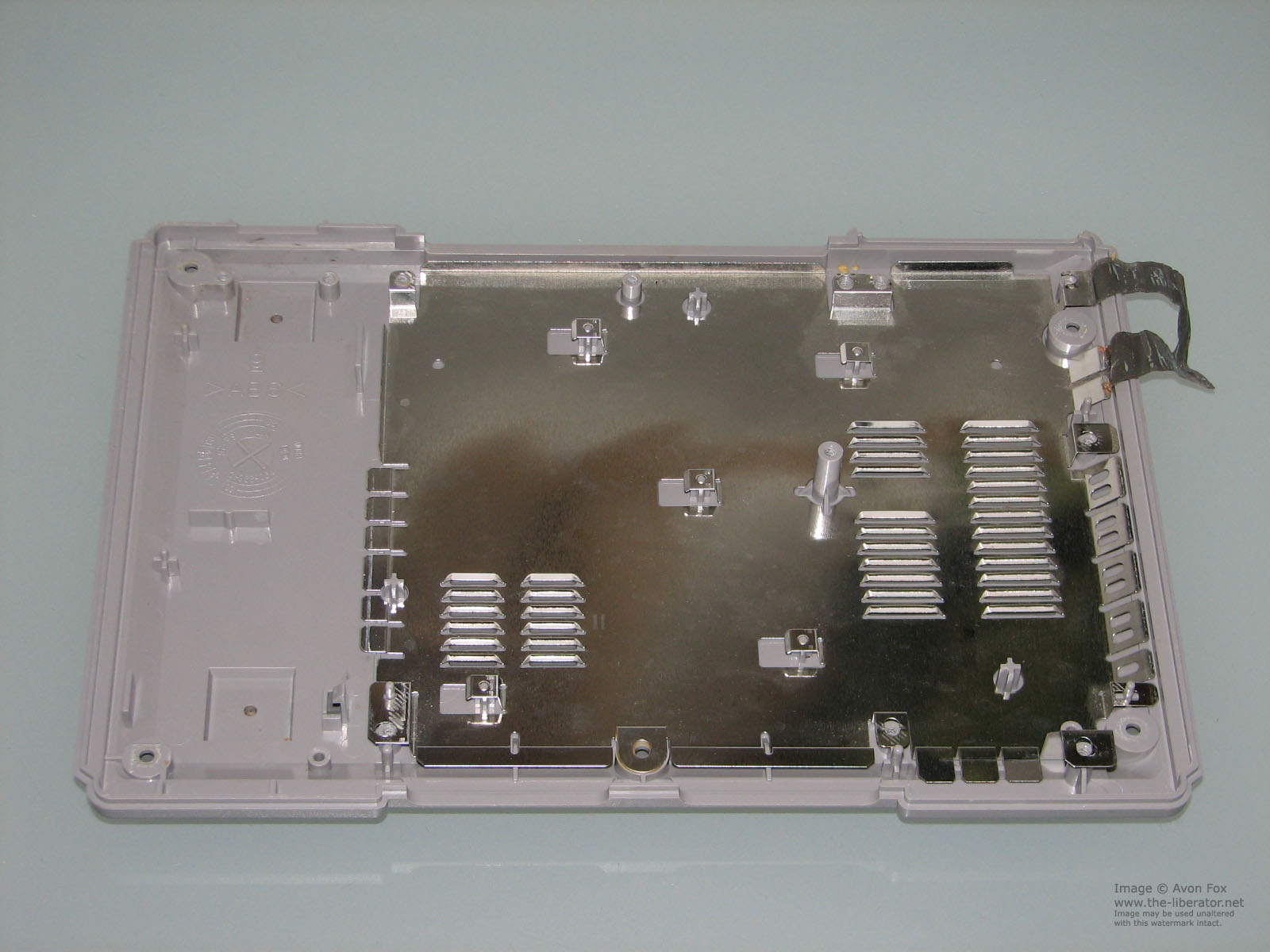

Sony PlayStation PAL SCPH-1002 Back Sony PlayStation PAL SCPH-1002 Underneath Sony PlayStation PAL SCPH-1002 Serial Number Inside Sony PlayStation PAL SCPH-1002 sony playstation ps1 scph-1002 pal shell bottom Sony PlayStation PAL SCPH-1002 Motherboard S-P121 / 1-658-467-22 Sony PlayStation PAL SCPH-1002 Controller Ports Sony PlayStation PAL SCPH-1002 240 Volt Power Supply Sony PlayStation PAL SCPH-1002 CD Laser Sony PlayStation PAL SCPH-1002 CD Drive Motor Sony PlayStation PAL SCPH-1002 CD Drive Parts Sony PlayStation PAL SCPH-1002 Motherboard S-XMB / 1-658-467-23



Sony PlayStation (PS1) PAL Model SCPH-1002

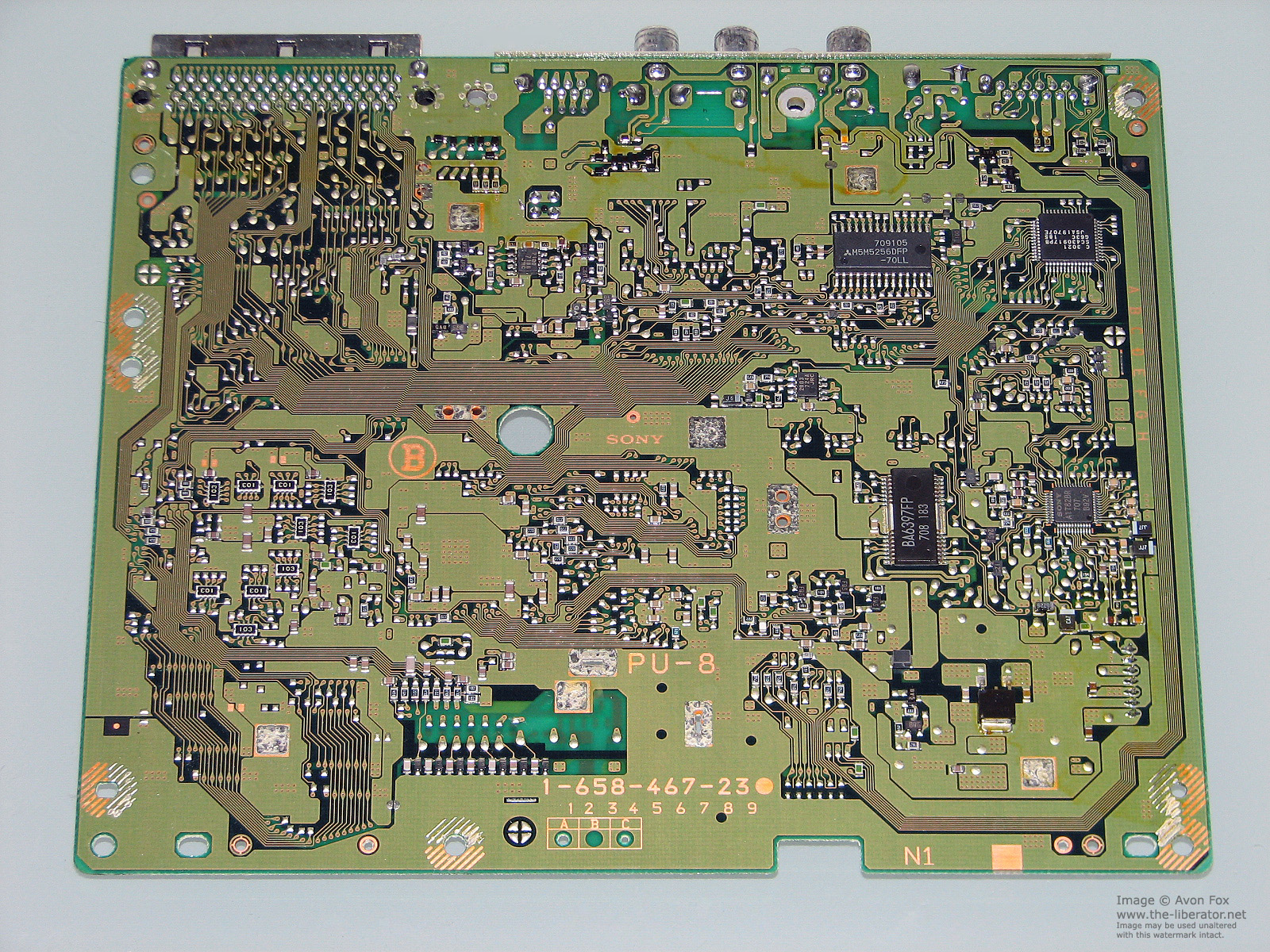

S-XMB / 1-658-467-23 Motherboard

Sony PlayStation PAL SCPH-1002 Motherboard S-XMB / 1-658-467-23
